TPSM63610RDFR - Texas Instruments

Description: Switching Voltage Regulators High-density, 36-V input, 1-V to 20-V output, 8-A power module in 7.5-mm x 6.5-mm HotRod QFN

Download TPSM63610RDFR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

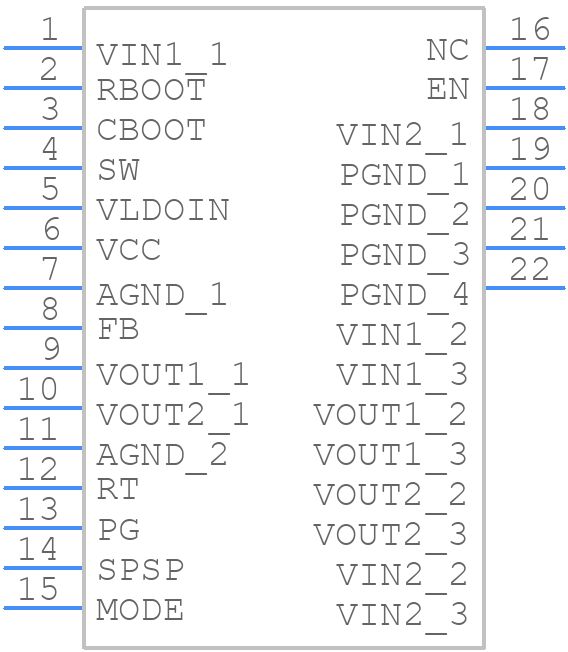

Symbol
TPSM63610RDFR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPSM63610RDFR - Texas Instruments PCB footprint - Other - Other - RDF0022A
click to zoom
3D Models
TPSM63610RDFR - Texas Instruments - 3D model - Other - RDF0022A
click to zoom

TPSM63610RDFR Details

  • Manufacturer Part Number:

    TPSM63610RDFR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    PFM CONTROL TECHNIQUE ALSO AVAILABLE

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    3 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-N22

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    22

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    8 A

  • Output Voltage-Max:

    20 V

  • Output Voltage-Min:

    1 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Peak Reflow Temperature (Cel):

    250

  • Seated Height-Max:

    4.1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2200 kHz

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

TPSM63610RDFR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPSM63610RDFR involves placing the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. TI provides a recommended PCB layout in the datasheet and application notes.
  • The selection of input and output capacitors depends on the specific application requirements. TI recommends using low-ESR capacitors with a minimum capacitance of 10uF for the input and output. The capacitor selection guide in the datasheet can help with the selection process.
  • The TPSM63610RDFR has an operating ambient temperature range of -40°C to 125°C. However, the device can be operated at a higher temperature range with derating. Refer to the datasheet for more information on temperature derating.
  • To ensure stability, follow the recommended PCB layout, use the recommended input and output capacitors, and ensure that the input voltage is within the specified range. Additionally, the device has a built-in soft-start feature to prevent oscillation during startup.
  • The TPSM63610RDFR has a maximum output current capability of 3A. However, the actual output current capability may be limited by the input voltage, output voltage, and thermal considerations. Refer to the datasheet for more information on output current capability.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPSM63610RDFR Overview

Use the download button to access the TPSM63610RDFR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPSM6, or try a keyword search, such as Switching Regulator or Controllers
