Description:Switching Voltage Regulators 2.75-V to 6-V, 4-A step-down module with adjustable-frequency & tracking in 3 x 4-mm SIP package 14-uSiP -40 to 125
A good PCB layout for the TPSM82810SSILR involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the output capacitors close to the VOUT pin. Additionally, it's recommended to use a star-ground configuration and to minimize the loop area of the input and output traces.
The choice of input and output capacitors depends on the specific application requirements. For the TPSM82810SSILR, a 10uF to 22uF ceramic capacitor is recommended for the input, and a 10uF to 47uF ceramic capacitor is recommended for the output. The capacitor's voltage rating should be at least 1.5 times the maximum input voltage.
The TPSM82810SSILR has an operating ambient temperature range of -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures. It's recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance.
To ensure stability, it's essential to follow the recommended PCB layout and component selection guidelines. Additionally, the output capacitor's ESR (Equivalent Series Resistance) should be within the recommended range of 10mΩ to 100mΩ. It's also recommended to add a small ceramic capacitor (e.g., 10nF) in parallel with the output capacitor to improve stability.
The TPSM82810SSILR has a maximum output current capability of 1A. However, the actual output current capability may be limited by the input voltage, output voltage, and thermal considerations. It's recommended to derate the output current based on the specific application requirements and thermal constraints.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPSM82810SSILR Overview

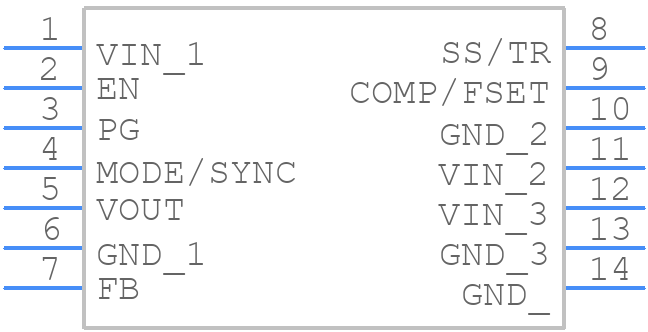

Use the download button to access the TPSM82810SSILR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPSM8,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
