TPSM82813SSILR - Texas Instruments

Description: Switching Voltage Regulators 2.75-V to 6-V, 3-A step-down module with adjustable-frequency & tracking in 3 x 4-mm SIP package

Download TPSM82813SSILR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

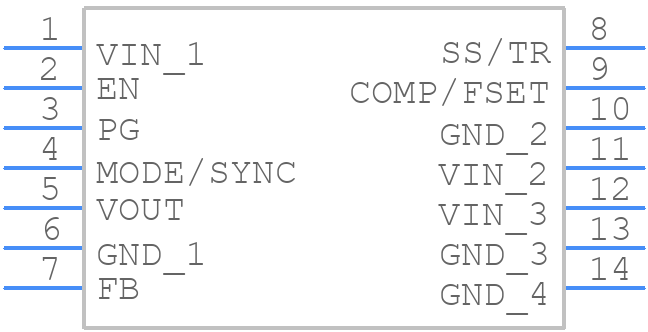

Symbol
TPSM82813SSILR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPSM82813SSILR - Texas Instruments PCB footprint - Other - Other - SIL0014B
click to zoom
3D Models
TPSM82813SSILR - Texas Instruments - 3D model - Other - SIL0014B
click to zoom

TPSM82813SSILR Details

  • Manufacturer Part Number:

    TPSM82813SSILR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2020-09-24

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING REGULATOR WITH BUILT IN INDUCTOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    6 V

  • Input Voltage-Min:

    2.75 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-XBCC-N14

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3 A

  • Output Voltage-Max:

    5.5 V

  • Output Voltage-Min:

    0.6 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    BCC

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.4 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    4000 kHz

  • Technology:

    HYBRID

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPSM82813SSILR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPSM82813SSILR involves placing the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. TI provides a recommended PCB layout in the datasheet and application notes.
  • To ensure stability, follow the recommended component values and PCB layout, and make sure the output capacitor is properly sized and placed. Additionally, ensure the input voltage is within the recommended range and the device is operated within its specified temperature range.
  • The TPSM82813SSILR can handle input voltages up to 18V, but it's recommended to operate within the specified input voltage range of 2.7V to 15V for optimal performance and reliability.
  • The TPSM82813SSILR is rated for operation up to 125°C, but its performance and reliability may degrade at high temperatures. Ensure the device is operated within its specified temperature range and consider using thermal management techniques if necessary.
  • To troubleshoot issues, start by verifying the input voltage, output voltage, and current. Check the PCB layout and component values, and ensure the device is operated within its specified temperature range. Use oscilloscopes and thermal imaging cameras to identify any issues. Consult the datasheet and application notes for guidance.
