Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as using a solid ground plane, minimizing trace lengths, and using bypass capacitors to reduce noise and ensure stability.
The output capacitor selection depends on the output voltage, output current, and desired ripple voltage. A general rule of thumb is to choose a capacitor with a capacitance value of at least 10uF and a voltage rating of at least 1.5 times the output voltage. Additionally, consider the capacitor's ESR (Equivalent Series Resistance) and ESL (Equivalent Series Inductance) to ensure stability.
The TPSM828222SILR has an operating temperature range of -40°C to 125°C. However, the maximum ambient temperature range depends on the specific application and the device's power dissipation. It's essential to consider the device's thermal characteristics and ensure proper heat sinking to maintain a safe operating temperature.
Yes, the TPSM828222SILR is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive applications and is manufactured using a high-reliability process. However, it's essential to review the device's qualification data and ensure it meets the specific requirements of your application.
To troubleshoot issues with the TPSM828222SILR, start by reviewing the datasheet and application notes. Check the PCB layout, component selection, and soldering quality. Use oscilloscopes and other measurement tools to analyze the output voltage, input voltage, and current. Consult Texas Instruments' technical support resources and application notes for guidance on troubleshooting and debugging.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPSM828222SILR Overview

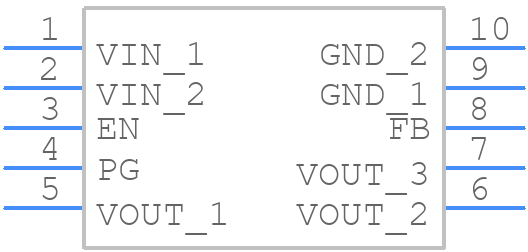

Use the download button to access the TPSM828222SILR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPSM8,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
