TPSM828223SILR - Texas Instruments

Description: Switching Voltage Regulators 5.5-V input, 2-A step-down module with integrated inductor in 2 x 2.5 x 1.1-mm SIP package

Download TPSM828223SILR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

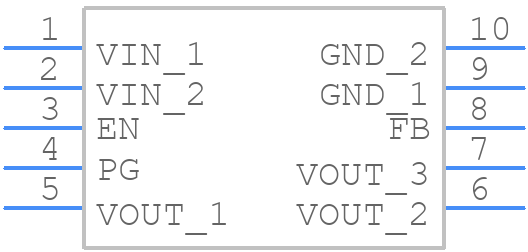

TPSM828223SILR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPSM828223SILR - Texas Instruments PCB footprint - Other - Other - TPSM828223SILR-3
click to zoom
3D Models
TPSM828223SILR - Texas Instruments - 3D model - Other - TPSM828223SILR-3
click to zoom

TPSM828223SILR Details

  • Manufacturer Part Number:

    TPSM828223SILR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING REGULATOR WITH BUILT IN INDUCTOR

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.4 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-XDMA-N10

  • Length:

    2.5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2 A

  • Output Voltage-Max:

    4 V

  • Output Voltage-Min:

    0.6 V

  • Output Voltage-Nom:

    2.5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    4000 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

TPSM828223SILR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPSM828223SILR involves placing the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 10uF, and to place the output capacitor close to the device. Additionally, the output voltage can be stabilized by adding a small ceramic capacitor (e.g. 100nF) in parallel with the output capacitor.
  • The maximum ambient temperature range for the TPSM828223SILR is -40°C to 125°C. However, the device can operate at a junction temperature of up to 150°C.
  • Yes, the TPSM828223SILR is a high-reliability device that is suitable for use in automotive, industrial, and aerospace applications. It is built with a robust design and has undergone rigorous testing to ensure its reliability.
  • The power dissipation of the TPSM828223SILR can be calculated using the formula: Pd = (Vin - Vout) x Iout, where Vin is the input voltage, Vout is the output voltage, and Iout is the output current.
