TPSM828224SILR - Texas Instruments

Description: Non-Isolated PoL Module DC DC Converter 1 Output 3.3V 2A 2.4V - 5.5V Input

Download TPSM828224SILR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

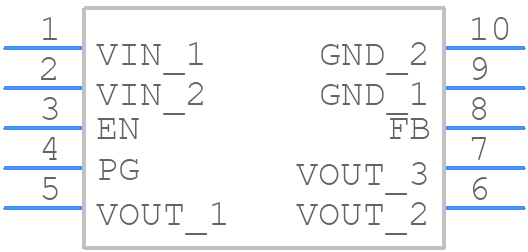

TPSM828224SILR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPSM828224SILR - Texas Instruments PCB footprint - Other - Other - SIL0010D_2021_1
click to zoom
3D Models
TPSM828224SILR - Texas Instruments - 3D model - Other - SIL0010D_2021_1
click to zoom

TPSM828224SILR Details

  • Manufacturer Part Number:

    TPSM828224SILR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING REGULATOR WITH BUILT IN INDUCTOR

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.4 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-XDMA-N10

  • Length:

    2.5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2 A

  • Output Voltage-Max:

    4 V

  • Output Voltage-Min:

    0.6 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    4000 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

TPSM828224SILR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPSM828224SILR should include a solid ground plane, wide power traces, and a thermal relief pattern under the device. TI provides a recommended layout in the datasheet and application notes.
  • To ensure a stable and accurate output voltage, make sure to use a high-quality output capacitor with a low ESR, and follow the recommended capacitor selection guidelines in the datasheet. Additionally, ensure the input voltage is stable and within the recommended range.
  • The maximum input voltage for the TPSM828224SILR is 6.5V. Exceeding this voltage may damage the device. Always ensure the input voltage is within the recommended range specified in the datasheet.
  • The output current capability of the TPSM828224SILR depends on the input voltage, output voltage, and ambient temperature. Use the equations provided in the datasheet to calculate the maximum output current for your specific application.
  • The EN (enable) pin is used to turn the device on or off. When the EN pin is high, the device is enabled, and when it's low, the device is disabled. Use a logic signal to control the EN pin, and ensure it's properly bypassed to prevent noise issues.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPSM828224SILR Overview

Use the download button to access the TPSM828224SILR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPSM8, or try a keyword search, such as Switching Regulator or Controllers
