A good PCB layout for the TPSM82822ASILR involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the output capacitors close to the VOUT pin. Additionally, it's recommended to use a star-ground configuration to minimize noise and ensure stable operation.
When selecting an output capacitor for the TPSM82822ASILR, consider the output voltage, output current, and ripple requirements. A general rule of thumb is to use a capacitor with a capacitance value between 10uF to 22uF, and a voltage rating that exceeds the output voltage by at least 1.5 times. X5R or X7R ceramic capacitors are good options due to their low ESR and high reliability.
The TPSM82822ASILR has an operating ambient temperature range of -40°C to 125°C. However, the device's performance and reliability may degrade if operated at extreme temperatures. It's recommended to keep the ambient temperature between 0°C to 85°C for optimal performance and reliability.
To ensure the TPSM82822ASILR meets automotive safety standards, follow the guidelines outlined in the ISO 26262 functional safety standard. This includes implementing a robust design, using safety-critical components, and performing thorough testing and validation. Additionally, consider using a safety-certified version of the device, such as the ASIL-R certified TPSM82822ASILR.
The recommended input voltage range for the TPSM82822ASILR is 2.7V to 5.5V. Operating the device outside of this range may affect its performance, efficiency, and reliability. It's essential to ensure the input voltage is within the recommended range to guarantee optimal performance and prevent damage to the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPSM82822ASILR Overview

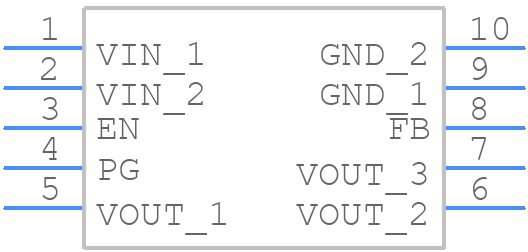

Use the download button to access the TPSM82822ASILR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPSM8,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
