Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as using a solid ground plane, minimizing trace lengths, and using decoupling capacitors to reduce noise and ensure stability.
The output capacitor should be chosen based on the output voltage, output current, and desired ripple voltage. A general rule of thumb is to use a capacitor with a capacitance value of at least 10uF and a voltage rating of at least 1.5 times the output voltage.
The maximum ambient temperature range for the TPSM82823SILR is -40°C to 125°C, but it's essential to consider the thermal derating curves provided in the datasheet to ensure the device operates within its specified temperature range.
Yes, the TPSM82823SILR is designed for high-reliability applications, such as automotive, industrial, and medical devices. It meets the requirements of the AEC-Q100 standard for automotive applications and is also suitable for other high-reliability applications.
Follow the recommended soldering profile and guidelines provided in the datasheet, and ensure the PCB is designed with a suitable land pattern and thermal relief to facilitate good solder joints.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPSM82823SILR Overview

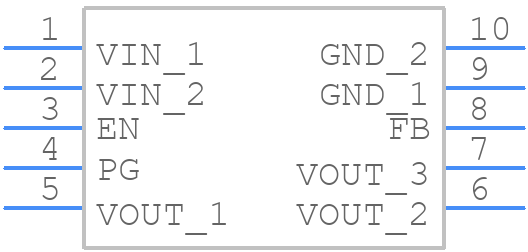

Use the download button to access the TPSM82823SILR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPSM8,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
