Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good thermal design practices, such as using a solid ground plane, placing thermal vias under the device, and keeping the thermal path short and direct.
To ensure accurate and stable output voltage, it's crucial to follow the recommended input and output capacitor selection, use a low-ESR output capacitor, and ensure the input voltage is within the specified range. Additionally, consider using a voltage reference IC, such as the TLV7031, for improved accuracy.
The maximum output current capability of the TPSM828512RDYR is 2A, but it's essential to consider the thermal limitations and power dissipation when operating at high currents. Ensure the device is properly heatsinked and the PCB is designed to handle the thermal requirements.
The TPSM828512RDYR is rated for operation up to 125°C, but it's essential to consider the derating curves and thermal limitations when operating in high-temperature environments. Ensure the device is properly heatsinked, and the PCB is designed to handle the thermal requirements.
To troubleshoot issues with the TPSM828512RDYR, start by verifying the input voltage, output voltage, and current. Check for proper PCB layout, thermal design, and component selection. Use oscilloscopes and multimeters to measure the output voltage and current. Consult the datasheet and application notes for guidance on troubleshooting common issues.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPSM828512RDYR Overview

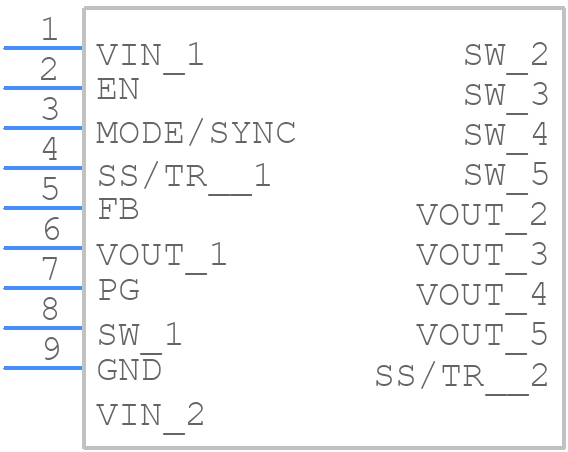

Use the download button to access the TPSM828512RDYR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPSM8,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
