Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as using a solid ground plane, minimizing trace lengths, and keeping sensitive nodes away from noise sources.
The TPSM82902SISR is rated for operation from -40°C to 125°C. Ensure proper thermal management by providing adequate heat sinking, using thermal vias, and keeping the device away from heat sources. Monitor the device's temperature using the internal temperature sensor or an external thermometer.
The recommended input capacitor value is 10uF to 22uF, with an X7R or X5R dielectric type. This ensures stable operation and minimizes voltage ripple. However, the optimal value may vary depending on the specific application and input voltage.
The TPSM82902SISR has a fixed output voltage of 2.9V. If you need a different output voltage, you can use an external resistor divider network or a voltage regulator module (VRM) to achieve the desired output voltage.
The TPSM82902SISR can deliver up to 2A of output current. However, the actual output current capability may be limited by the input voltage, output voltage, and thermal considerations. Ensure the device is operated within its specified ratings to avoid overheating or damage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPSM82902SISR Overview

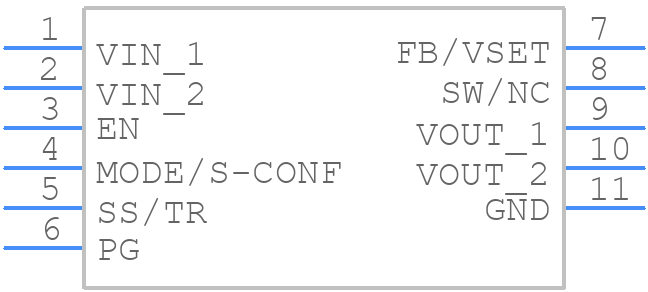

Use the download button to access the TPSM82902SISR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPSM8,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
