Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce EMI and noise.
Choose input capacitors with low ESR (Equivalent Series Resistance) and high ripple current ratings. For output capacitors, select ones with low ESR, high capacitance, and a voltage rating that meets or exceeds the output voltage. Refer to the datasheet for specific recommendations and calculations.
The TPSM83100SIUR is rated for operation up to 85°C ambient temperature. However, it's essential to consider the device's thermal characteristics, such as junction temperature and thermal resistance, to ensure reliable operation in your specific application.
The TPSM83100SIUR has built-in OCP and SCP features. To implement these features, connect the OCP pin to a resistor divider network that sets the current limit, and connect the SCP pin to a capacitor that sets the short-circuit detection time. Refer to the datasheet for specific implementation details and calculations.
The recommended input voltage range for the TPSM83100SIUR is 2.7V to 5.5V. Operating outside this range may affect the device's performance, efficiency, and reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPSM83100SIUR Overview

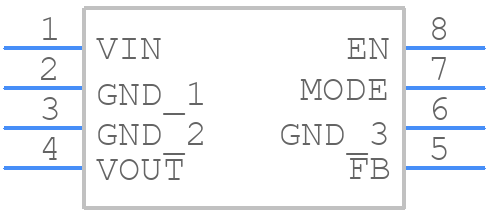

Use the download button to access the TPSM83100SIUR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPSM8,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
