TPSM84209RKHR - Texas Instruments

Description: Switching Voltage Regulators 4.5-V to 28-V input, 1.2-V to 6-V output, 2.5-A power module 9-QFN-FCMOD -40 to 85

Download TPSM84209RKHR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

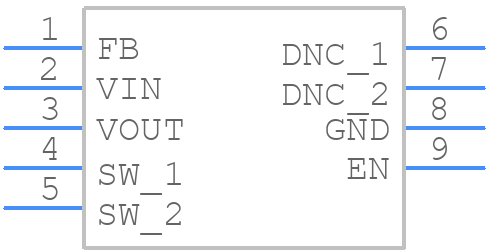

TPSM84209RKHR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPSM84209RKHR - Texas Instruments PCB footprint - Other - Other - RKH0009A
click to zoom
3D Models
TPSM84209RKHR - Texas Instruments - 3D model - Other - RKH0009A
click to zoom

TPSM84209RKHR Details

  • Manufacturer Part Number:

    TPSM84209RKHR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2019-04-19

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING REGULATOR WITH BUILT IN INDUCTOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    28 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PQCC-N9

  • Length:

    4.5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2.5 A

  • Output Voltage-Max:

    6 V

  • Output Voltage-Min:

    1.2 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    923 kHz

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

TPSM84209RKHR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure that the thermal pad is connected to a large copper area to dissipate heat efficiently.
  • Implement a robust thermal management system, ensure good airflow, and consider using a heat sink or thermal interface material. Monitor the module's temperature and adjust the system design accordingly.
  • The recommended input voltage ripple is ≤ 1% of the nominal input voltage. Exceeding this may affect the module's performance and reliability.
  • Yes, the module can be used in redundant power supply configurations. However, ensure that the input voltage and current ratings are not exceeded, and proper ORing diodes or power switches are used to prevent back-feeding.
  • Check the input voltage, output load, and PCB layout. Verify that the module is properly soldered and that the thermal pad is connected correctly. Use an oscilloscope to measure the output voltage and check for noise or oscillations.
