Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as using a solid ground plane, minimizing trace lengths, and keeping the input and output capacitors close to the device. Additionally, using a 4-layer PCB with a dedicated power plane can help reduce noise and improve performance.
The TPSM843A22RDGR is rated for operation from -40°C to 125°C. To ensure the device operates within this range, ensure proper thermal management, such as using a heat sink or thermal pad, and avoid exposing the device to extreme temperatures during storage or handling.
The TPSM843A22RDGR is capable of delivering up to 3A of output current. However, the maximum output current is dependent on the input voltage, output voltage, and ambient temperature. Refer to the datasheet for detailed information on output current capability under various operating conditions.
The selection of input and output capacitors is critical for the device's performance and stability. Texas Instruments recommends using low-ESR capacitors with a minimum capacitance of 10uF for the input and output. The capacitor selection should also consider the voltage rating, ripple current, and temperature rating.
The TPSM843A22RDGR is designed to handle input voltage transients, but it's essential to ensure that the input voltage remains within the specified range during these events. The device may enter a hiccup mode or shut down temporarily during severe input voltage transients to protect itself from damage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPSM843A22RDGR Overview

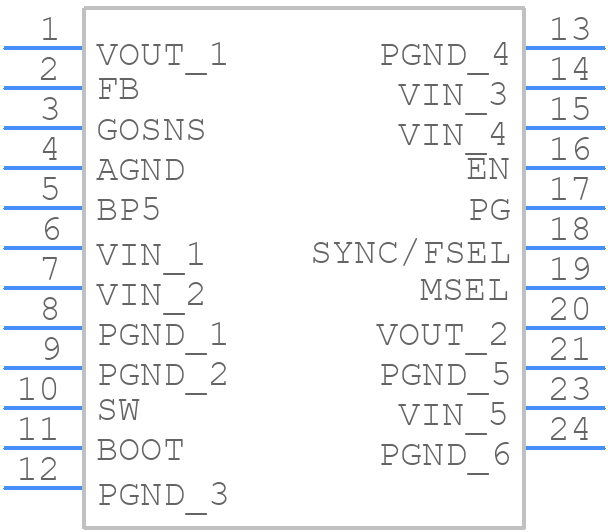

Use the download button to access the TPSM843A22RDGR schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like TPSM8,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
