Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as using a solid ground plane, minimizing trace lengths, and keeping the input and output capacitors close to the device.
The TPSM843B22RDGR is rated for operation from -40°C to 125°C. Ensure proper thermal management by providing adequate heat sinking, using thermal vias, and keeping the device away from heat sources. Monitor the device's temperature using the thermal monitoring pin (TMP) if necessary.
The TPSM843B22RDGR can deliver up to 3A of output current. However, the maximum current capability depends on the input voltage, output voltage, and thermal conditions. Refer to the datasheet's electrical characteristics table for specific current limits.
The TPSM843B22RDGR is a adjustable output voltage regulator. To set the output voltage, connect a resistor divider network between the output voltage pin (VOUT) and the ground pin (GND). The datasheet provides a formula to calculate the required resistor values for a specific output voltage.
The enable pin (EN) is used to turn the device on or off. Connect the EN pin to a logic high (VIN or VCC) to enable the device, or connect it to a logic low (GND) to disable the device. This pin can be used to implement power sequencing or to reduce power consumption when the device is not in use.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPSM843B22RDGR Overview

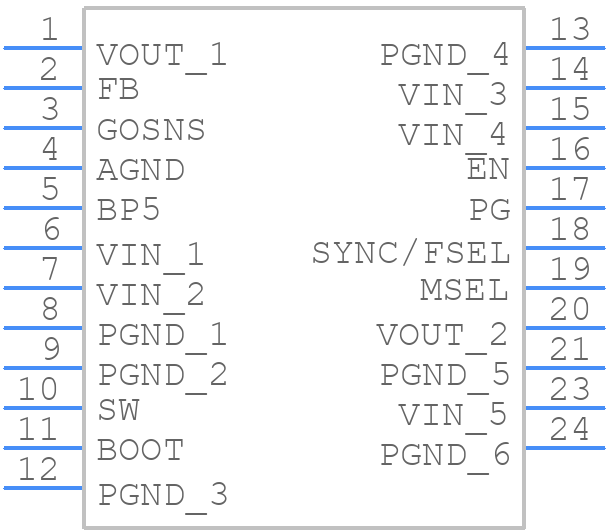

Use the download button to access the TPSM843B22RDGR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPSM8,
or try a keyword search, such as Switching Regulator or Controllers
