A good PCB layout for the TPSM84624MOLR should include a solid ground plane, wide power traces, and a thermal relief pattern under the device to facilitate heat dissipation. TI provides a recommended PCB layout in the datasheet and application notes.
To ensure the device operates within its SOA, monitor the input voltage, output current, and junction temperature. Use the datasheet's SOA curves to determine the maximum allowable current and voltage combinations. Implement overcurrent protection and thermal monitoring to prevent damage.
Exceeding the maximum junction temperature (TJ) of 150°C can lead to reduced lifespan, increased thermal resistance, and potentially catastrophic failure. Ensure proper thermal design, heat sinking, and cooling to maintain TJ within the recommended range.
Choose input and output capacitors with low ESR, high ripple current rating, and suitable voltage ratings. Consider the device's output voltage, output current, and switching frequency when selecting capacitors. TI provides guidance on capacitor selection in the datasheet and application notes.
Not using the recommended external components, such as the input filter or output capacitors, can lead to reduced performance, increased noise, and potential instability. Follow TI's recommendations for external components to ensure optimal performance and reliability.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPSM84624MOLR Overview

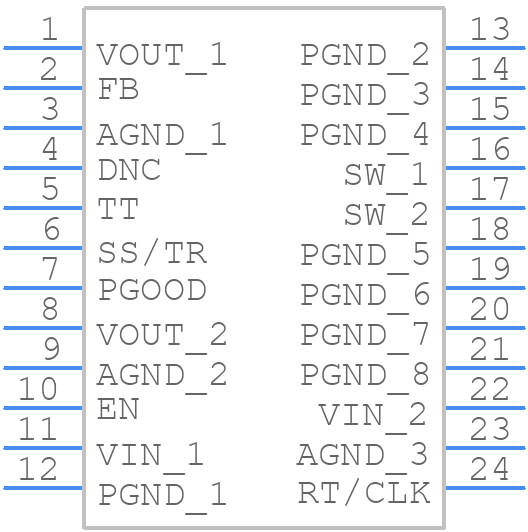

Use the download button to access the TPSM84624MOLR schematic symbol, PCB footprint, and 3D model.
