Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as using a solid ground plane, minimizing trace lengths, and keeping sensitive nodes away from noise sources.
The TPSM86638RCGR is rated for operation from -40°C to 125°C. Ensure proper thermal design, including heat sinking and airflow, to maintain the device temperature within the specified range. Also, consider the thermal resistance of the package and PCB.
Not using the recommended input capacitors can lead to reduced performance, increased noise, and potential instability. The input capacitors help filter out noise, reduce ripple, and ensure proper voltage regulation. Always follow the recommended capacitor values and types specified in the datasheet.
While the TPSM86638RCGR is a high-performance device, it may not meet the specific requirements of high-reliability or aerospace applications. Texas Instruments offers other devices with enhanced reliability and radiation-hardened options. Consult with TI's application engineers or review the device's qualification data to determine suitability.
When troubleshooting output voltage or current issues, start by verifying the input voltage, output load, and PCB layout. Check for proper component selection, soldering, and assembly. Use oscilloscopes or other measurement tools to analyze the output waveform and identify potential issues. Consult the datasheet and application notes for guidance on troubleshooting and debugging.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPSM86638RCGR Overview

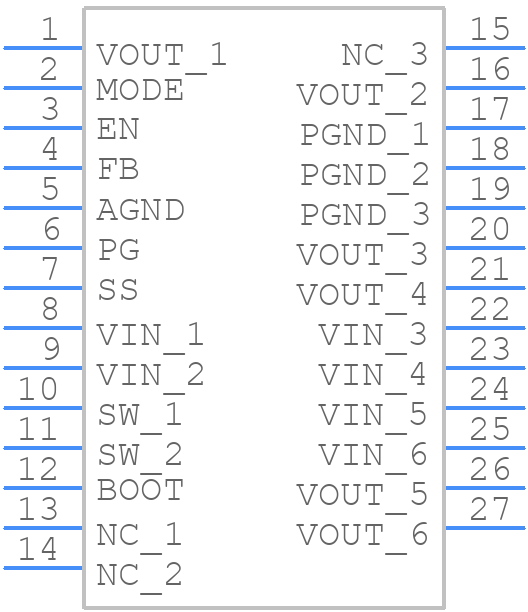

Use the download button to access the TPSM86638RCGR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPSM8,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
