Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as using a solid ground plane, minimizing trace lengths, and keeping sensitive nodes away from noise sources.
To ensure reliable operation, it's crucial to follow the recommended operating conditions, including temperature, voltage, and current. Additionally, consider using thermal management techniques, such as heat sinks or thermal interfaces, to maintain a stable temperature.
When selecting input and output capacitors, consider factors such as capacitance value, voltage rating, ESR, and temperature coefficient. The datasheet provides guidelines for capacitor selection, but it's essential to evaluate the specific requirements of your application.
To troubleshoot common issues, start by verifying the PCB layout, component selection, and soldering quality. Use oscilloscopes and other diagnostic tools to identify the root cause of the issue. Consult the datasheet and application notes for guidance on troubleshooting and debugging.
Using a different inductor value or type than recommended can affect the performance and stability of the TPSM86838RCGR. It's essential to evaluate the impact of inductor selection on the converter's operating frequency, efficiency, and output voltage ripple.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPSM86838RCGR Overview

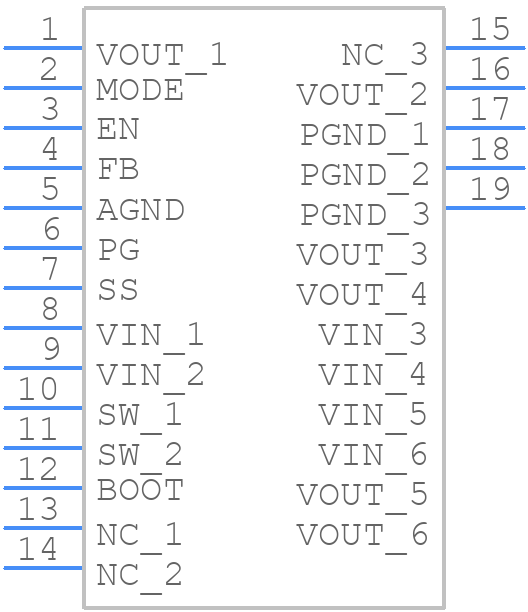

Use the download button to access the TPSM86838RCGR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPSM8,
or try a keyword search, such as Switching Regulator or Controllers
