The recommended PCB layout for the TPSMC51A involves placing the device close to the protected circuit, using short and wide traces for the input and output pins, and ensuring good thermal conductivity to dissipate heat. A 4-layer PCB with a solid ground plane is recommended.
The value of R1 depends on the desired clamping voltage and the maximum surge current. A higher value of R1 results in a higher clamping voltage, but also increases the response time. A good starting point is to use the values recommended in the datasheet, and then adjust based on the specific application requirements.
The TPSMC51A is rated for operation from -40°C to 150°C, but the maximum operating temperature range may be limited by the specific application and the PCB layout. It's recommended to derate the device's performance at high temperatures and ensure good thermal management.
The TPSMC51A is designed for low-frequency applications, and its performance may degrade at high frequencies. If high-frequency protection is required, it's recommended to use a different device or consult with Littelfuse's application engineers for guidance.
The TPSMC51A is a surface-mount device, and proper soldering techniques are essential to ensure reliable operation. Use a soldering iron with a temperature of 260°C to 280°C, and apply a small amount of solder paste to the pads. Avoid applying excessive heat or pressure, which can damage the device.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPSMC51A Overview

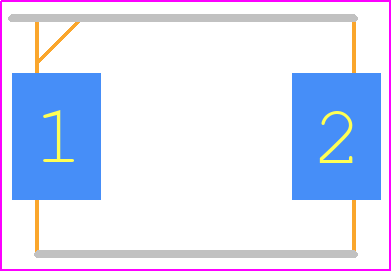

Use the download button to access the TPSMC51A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPSMC,
or try a keyword search, such as Transient Suppressors
