The recommended PCB layout for optimal thermal performance involves placing the device on a thermal pad connected to a large copper area on the PCB, and ensuring good airflow around the device. A minimum of 2oz copper thickness is recommended.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended derating curves, ensure good thermal design, and consider using a heat sink or thermal interface material. Additionally, verify that the device is operated within the specified junction temperature range.
The maximum allowed voltage on the enable pin (EN) is 6V, which is higher than the recommended operating voltage of 3.3V or 5V. However, it's essential to ensure that the voltage on the EN pin does not exceed the maximum rating to prevent damage to the device.
Yes, the TPT3232E-SS3R is suitable for hot-swap applications due to its internal overcurrent protection and undervoltage lockout features. However, it's crucial to follow the recommended design guidelines and ensure that the device is properly bypassed during hot-swap events.
The typical turn-on and turn-off time for the TPT3232E-SS3R is around 1-2ms, which is relatively fast compared to other power switches. This fast switching time helps minimize power loss during transitions.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPT3232E-SS3R Overview

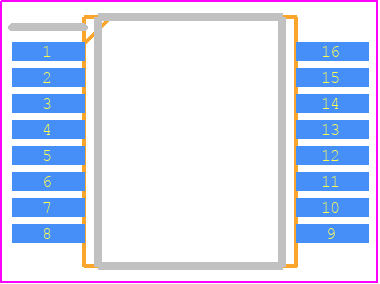

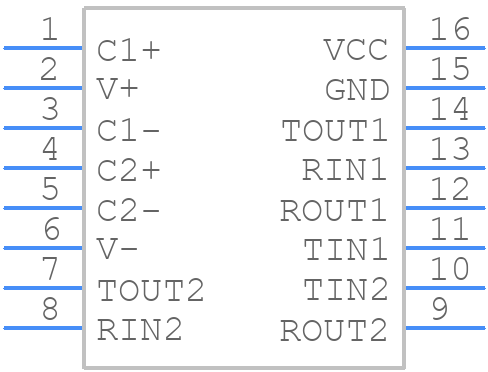

Use the download button to access the TPT3232E-SS3R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPT32,
or try a keyword search, such as Line Driver or Receivers
