The recommended PCB layout involves placing the device on a 4-layer board with a solid ground plane, using thermal vias to dissipate heat, and keeping the input and output traces as short as possible. A thermal pad on the bottom of the device should be connected to a heat sink or a thermal interface material.
To ensure the device operates within the SOA, monitor the junction temperature, input power, and output current. Implement thermal monitoring and protection circuits, and consider using a thermal shutdown feature to prevent damage. Additionally, follow the recommended derating curves for power and temperature.
The recommended input capacitor is a low-ESR, high-frequency capacitor (e.g., 10uF, X7R, 16V) placed close to the device's input pins. The recommended output capacitor is a low-ESR, high-frequency capacitor (e.g., 22uF, X7R, 16V) placed close to the device's output pins. The capacitor values may vary depending on the specific application and operating frequency.
To minimize EMI and EMC issues, use a shielded enclosure, keep the device and surrounding components away from radiating sources, and implement proper grounding and shielding techniques. Additionally, use EMI filters or common-mode chokes on the input and output lines, and consider using a spread-spectrum clock generator to reduce EMI emissions.
The TPT482-SO2R is designed to meet high-reliability standards, with a typical MTBF of 10 million hours or more, depending on the operating conditions and environment. However, the actual MTBF may vary depending on the specific application, operating temperature, and other factors. Consult the manufacturer's reliability data and perform thorough testing and validation to ensure the device meets the required reliability standards.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPT482-SO2R Overview

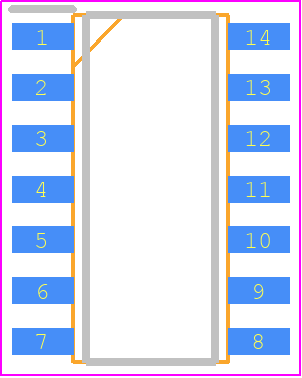

Use the download button to access the TPT482-SO2R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPT48,
or try a keyword search, such as Line Driver or Receivers
