The recommended land pattern for TPX255925MT-7062B1 can be found in the TDK Corporation's recommended footprint document, which is usually available on their website or through their customer support. The document provides detailed information on the recommended pad layout, dimensions, and spacing for optimal assembly and reliability.
The TPX255925MT-7062B1 has a high power density, and proper thermal management is crucial to ensure reliable operation. Engineers should consider using thermal vias, thermal pads, or heat sinks to dissipate heat. Additionally, they should ensure good airflow around the component and consider using thermal interface materials to reduce thermal resistance.
The maximum operating temperature range for TPX255925MT-7062B1 is typically specified in the datasheet as -40°C to +125°C. However, it's essential to note that the component's performance and reliability may degrade at higher temperatures, and engineers should consider derating the component's specifications accordingly.
The TPX255925MT-7062B1 is designed to withstand certain levels of vibration, but its performance and reliability may be affected in high-vibration environments. Engineers should consult the datasheet and TDK Corporation's application notes for guidance on vibration testing and derating. They may also need to consider additional mechanical support or vibration isolation measures to ensure reliable operation.
The TPX255925MT-7062B1 is designed to operate in a variety of environmental conditions, including humid environments. However, engineers should take precautions to prevent moisture ingress and ensure the component's reliability. This may include using conformal coatings, moisture-resistant materials, and proper sealing techniques. They should also follow TDK Corporation's guidelines for storage and handling to prevent moisture absorption.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPX255925MT-7062B1 Overview

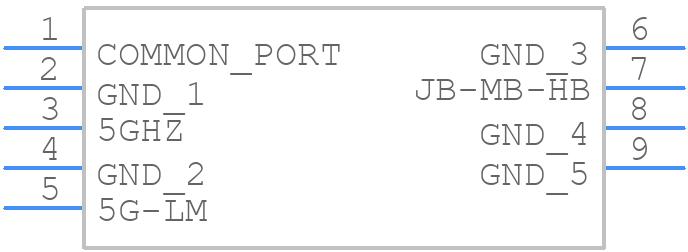

Use the download button to access the TPX255925MT-7062B1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPX25,
or try a keyword search, such as General Purpose Passive Filters
