TQ2-12V-3 footprint, schematic symbol and 3D model by Panasonic

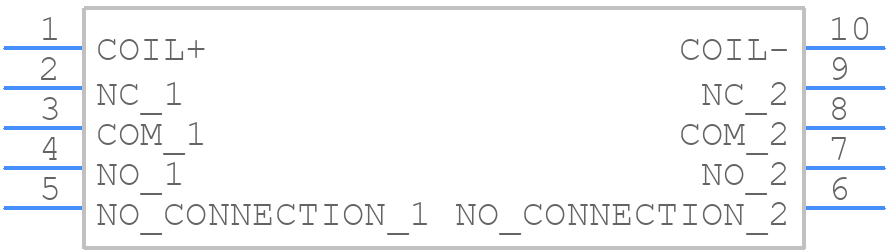

Symbol

click to zoom

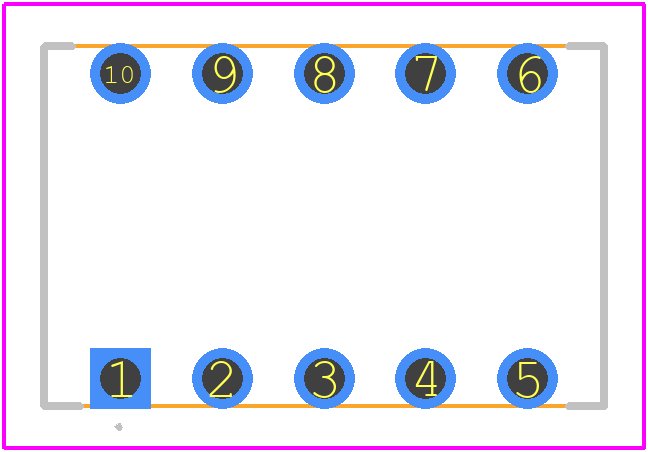

PCB Footprints

TQ2-12V-3 - Panasonic PCB footprint - Other - Other - TQ2-12V-3-5

click to zoom

3D Models

TQ2-12V-3 - Panasonic - 3D model - Other - TQ2-12V-3-5

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TQ2-12V-3
Part Number TQ2-12V-3
Manufacturer Panasonic
Pin Count 10
Part Category Relay or Contactor
Package Category Other
Footprint Name Other - TQ2-12V-3-5
Released Date Apr 5, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

TQ2-12V-3 Details

Manufacturer Part Number:
TQ2-12V-3
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active Unconfirmed
Package Description:
ROHS COMPLIANT
Country Of Origin:
Japan
ECCN Code:
EAR99
HTS Code:
8536.41.00.20
Factory Lead Time:
16 Weeks
Manufacturer:
Panasonic Electronic Components
YTEOL:
2
Body Breadth:
9 mm
Body Height:
5 mm
Body Length or Diameter:
14 mm
Coil Current(DC)-Max:
0.012 A
Coil Operate Voltage(DC):
9 V
Coil Power:
140 mW
Coil Release Voltage(DC):
1.2 V
Coil Resistance:
1028 Ω
Coil Voltage(DC)-Max:
12 V
Coil/Input Supply Type:
DC
Contact (AC) Max Rating R Load:
.5A@125VAC
Contact Current(AC)-Max:
0.5 A
Contact Current(DC)-Max:
1 A
Contact (DC) Max Rating R Load:
1A@30VDC
Contact Voltage(AC)-Max:
125 V
Contact Voltage(DC)-Max:
30 V
Contact/Output Supply Type:
AC/DC
Electrical Life:
100000 Cycle(s)
Mounting Feature:
THROUGH HOLE-STRAIGHT
Operate Time:
3 ms
Operating Temperature-Max:
70 °C
Operating Temperature-Min:
-40 °C
Packing Method:
BOX; TUBE
Physical Dimension:
14mm x 9mm x 5mm
Reference Standard:
BSI; CSA; UL
Relay Action:
MOMENTARY
Relay Function:
DPDT
Relay Type:
POWER/SIGNAL RELAY
Release Time:
3 ms
Surface Mount:
NO
Termination Type:
SOLDER

TQ2-12V-3 Frequently Asked Questions (FAQs)

The maximum switching frequency of the TQ2-12V-3 relay is 20 Hz. However, it's recommended to consult with Panasonic's application engineers to determine the suitable switching frequency for your specific application.
The TQ2-12V-3 relay is designed to operate in temperatures ranging from -40°C to 85°C. However, the relay's performance and lifespan may be affected at extreme temperatures. It's recommended to consult with Panasonic's application engineers for specific guidance on using the relay in high-temperature environments.
Panasonic provides a recommended PCB layout and spacing guideline in the relay's datasheet. However, it's recommended to consult with Panasonic's application engineers for specific guidance on PCB design and layout to ensure optimal performance and reliability.
The TQ2-12V-3 relay is designed to withstand vibrations up to 10 G (10-55 Hz). However, it's recommended to consult with Panasonic's application engineers to determine the relay's suitability for your specific vibration environment.
Panasonic provides a recommended derating curve for the TQ2-12V-3 relay in the datasheet. However, it's recommended to consult with Panasonic's application engineers for specific guidance on derating the relay for your specific application.
