- Part Number TQ2-2M-24V
- Manufacturer Panasonic
- Pin Count 10
- Part Category Relay or Contactor
- Package Category Other
- Footprint Name Other - TQ2-2M-24V-1
- Released Date Oct 4, 2024
- Last Modified Date Jan 21, 2026 4:45 PM UTC
- Pinout / Pin List Click Here (Member Only)
TQ2-2M-24V Details
-
Manufacturer Part Number:
TQ2-2M-24V
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
ROHS COMPLIANT
-
Country Of Origin:
Japan
-
ECCN Code:
EAR99
-
HTS Code:
8536.49.00.50
-
Factory Lead Time:
16 Weeks
-
Manufacturer:
Panasonic Electronic Components
-
YTEOL:
7.87
TQ2-2M-24V Frequently Asked Questions (FAQs)
-
The maximum switching frequency of the TQ2-2M-24V relay is 30 operations per minute. However, this frequency may vary depending on the application and environmental conditions.
-
The TQ2-2M-24V relay is designed to operate in temperatures ranging from -40°C to 85°C. However, the relay's performance and lifespan may be affected at extreme temperatures. It's recommended to derate the relay's specifications at high temperatures.
-
The recommended PCB layout and spacing for the TQ2-2M-24V relay can be found in the Panasonic application note 'Relay Mounting and PCB Layout Guidelines'. Generally, a minimum spacing of 1.5 mm between the relay and other components is recommended.
-
The TQ2-2M-24V relay is designed to withstand vibrations up to 10 G (10 m/s²) in the frequency range of 10-200 Hz. However, the relay's performance and lifespan may be affected at extreme vibration levels. It's recommended to perform vibration testing and derate the relay's specifications accordingly.
-
The recommended soldering temperature for the TQ2-2M-24V relay is 260°C (500°F) for 3-5 seconds. It's essential to follow the soldering guidelines to prevent damage to the relay.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
TQ2-2M-24V Overview

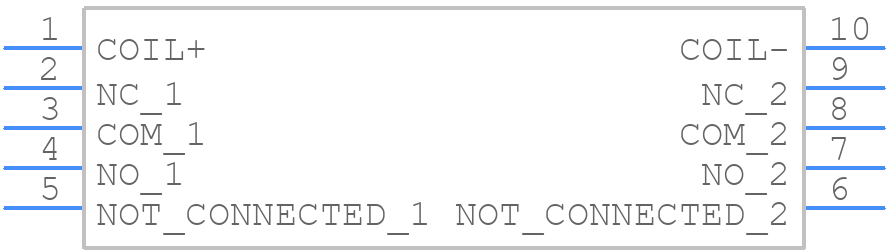

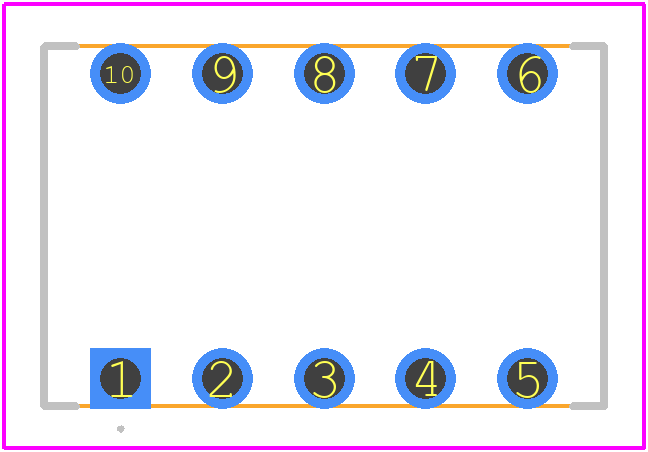

Use the download button to access the TQ2-2M-24V schematic symbol, PCB footprint, and 3D model.
