TQ2-L-4.5V - Panasonic

Description: Flat, 5 mm 2 Form C, 2 A, relays

Download TQ2-L-4.5V Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

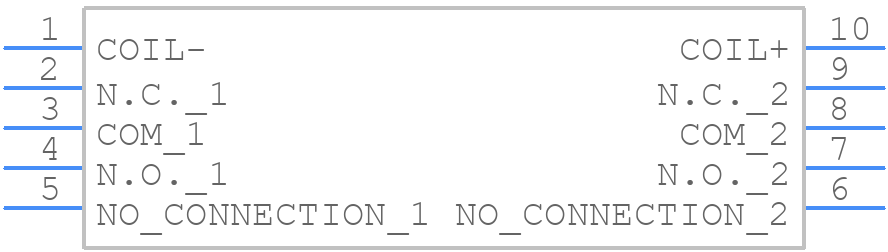

TQ2-L-4.5V - Panasonic - PCB symbol
click to zoom
PCB Footprints

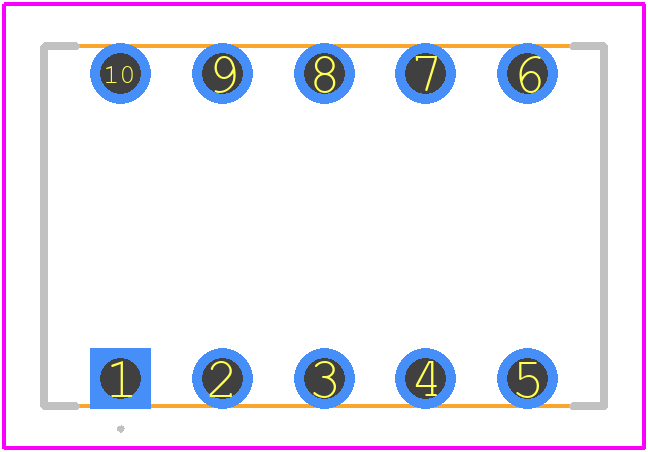

TQ2-L-4.5V - Panasonic PCB footprint - Other - Other - TQ2-L-5V-1
click to zoom
3D Models
TQ2-L-4.5V - Panasonic - 3D model - Other - TQ2-L-5V-1
click to zoom

TQ2-L-4.5V Details

  • Manufacturer Part Number:

    TQ2-L-4.5V

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.49.00.50

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    7

  • Additional Feature:

    LOW PROFILE

  • Body Breadth:

    9 mm

  • Body Height:

    5 mm

  • Body Length or Diameter:

    14 mm

  • Coil Current(DC)-Max:

    0.022 A

  • Coil Operate Voltage(DC):

    3.38 V

  • Coil Power:

    100 mW

  • Coil Release Voltage(DC):

    3.38 V

  • Coil Resistance:

    202.5 Ω

  • Coil Voltage(DC)-Max:

    4.5 V

  • Coil/Input Supply Type:

    DC

  • Contact (AC) Max Rating R Load:

    1A@125VAC

  • Contact Current(AC)-Max:

    1 A

  • Contact Current(DC)-Max:

    1 A

  • Contact (DC) Max Rating R Load:

    1A@110VDC

  • Contact Voltage(AC)-Max:

    125 V

  • Contact Voltage(DC)-Max:

    110 V

  • Contact/Output Supply Type:

    AC/DC

  • Electrical Life:

    200000 Cycle(s)

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Operate Time:

    3 ms

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    BOX; TUBE

  • Physical Dimension:

    14mm x 9mm x 5mm

  • Reference Standard:

    CSA; UL

  • Relay Action:

    LATCHED

  • Relay Function:

    DPDT

  • Relay Type:

    POWER/SIGNAL RELAY

  • Release Time:

    3 ms

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER

TQ2-L-4.5V Frequently Asked Questions (FAQs)

  • The recommended land pattern for TQ2-L-4.5V is a rectangular pad with a size of 2.5mm x 1.5mm, with a 0.5mm radius corner. The pad should be centered on the component and have a non-solder mask defined (NSMD) pad shape.
  • To handle thermal considerations for TQ2-L-4.5V, ensure good thermal conduction by using a thermal pad or a heat sink, and keep the ambient temperature within the recommended operating range of -40°C to 125°C. Also, avoid overheating during soldering and rework.
  • The recommended soldering profile for TQ2-L-4.5V is a peak temperature of 260°C, with a dwell time of 10-30 seconds above 220°C. The soldering process should be done in a nitrogen atmosphere to prevent oxidation.
  • Yes, TQ2-L-4.5V is designed to withstand high-vibration environments. However, it's essential to ensure proper mounting and soldering to prevent mechanical stress and vibration-induced failures.
  • Store TQ2-L-4.5V in a dry, cool place, away from direct sunlight and moisture. Handle the components by the body, avoiding touching the leads or electrical contacts. Use anti-static packaging and handling procedures to prevent electrostatic discharge (ESD) damage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TQ2-L-4.5V Overview

Use the download button to access the TQ2-L-4.5V schematic symbol, PCB footprint, and 3D model.
