Panasonic provides a recommended PCB layout and land pattern in their application notes, which can be found on their website. The recommended layout ensures proper heat dissipation and minimizes the risk of electrical noise and interference.
To ensure reliable operation in high-temperature environments, it's essential to follow Panasonic's recommended derating guidelines for the relay's operating temperature and voltage. Additionally, proper heat sinking and airflow can help to reduce the relay's operating temperature.
While the datasheet doesn't specify a maximum surge current, Panasonic recommends limiting the surge current to 10 times the rated current (6A) for a maximum duration of 10ms. Exceeding this limit may reduce the relay's lifespan or cause damage.
While the TQ2-L2-6V relay is designed for general-purpose switching applications, it's not recommended for high-frequency switching applications (e.g., PWM) due to the relay's mechanical nature and potential for contact wear. For high-frequency switching, consider using a solid-state relay or a specialized high-frequency relay.
To minimize EMI when using the TQ2-L2-6V relay, ensure proper PCB layout and routing, use shielding and grounding techniques, and consider adding EMI filters or chokes to the relay's control circuit. Additionally, follow Panasonic's recommended layout and spacing guidelines for the relay's pins.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TQ2-L2-6V Overview

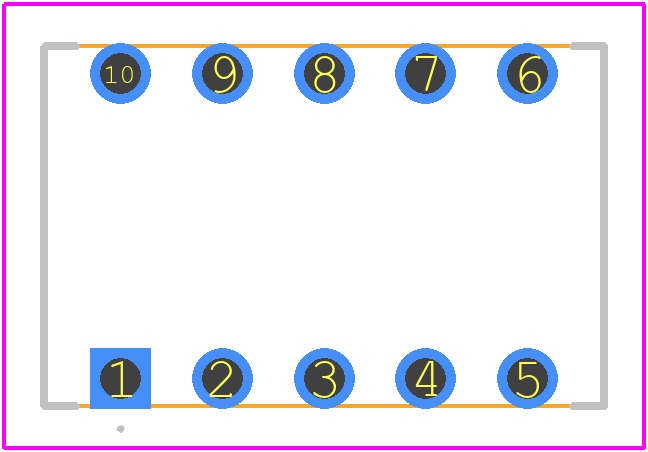

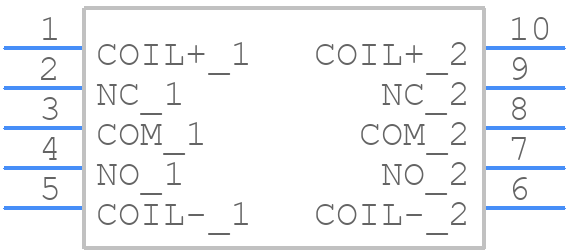

Use the download button to access the TQ2-L2-6V schematic symbol, PCB footprint, and 3D model.
