TQ2H-12V - Panasonic

Description: Flat, 5 mm 2 Form C, 2 A, relays

Download TQ2H-12V Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

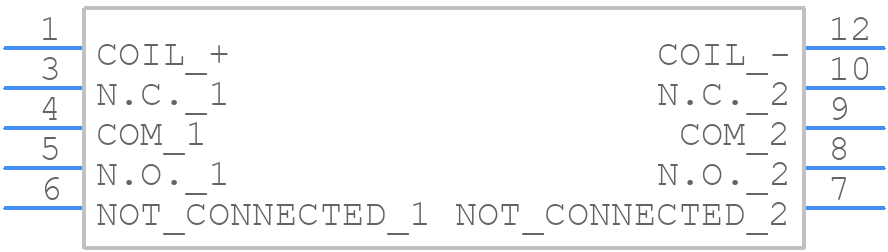

Symbol
TQ2H-12V - Panasonic - PCB symbol
click to zoom

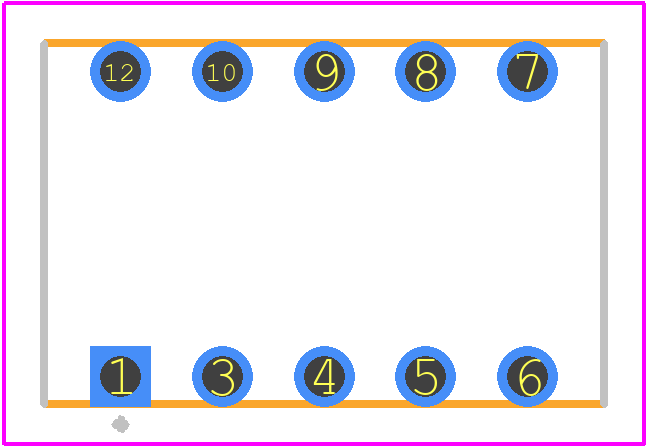

PCB Footprints
TQ2H-12V - Panasonic PCB footprint - Other - Other - TQ2x
click to zoom
3D Models
TQ2H-12V - Panasonic - 3D model - Other - TQ2x
click to zoom

TQ2H-12V Details

  • Manufacturer Part Number:

    TQ2H-12V

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.49.00.50

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    7.87

  • Additional Feature:

    LOW PROFILE

  • Body Breadth:

    9 mm

  • Body Height:

    5 mm

  • Body Length or Diameter:

    14 mm

  • Coil Current(DC)-Max:

    0.012 A

  • Coil Operate Voltage(DC):

    9 V

  • Coil Power:

    140 mW

  • Coil Release Voltage(DC):

    1.2 V

  • Coil Resistance:

    1028 Ω

  • Coil Voltage(DC)-Max:

    12 V

  • Coil/Input Supply Type:

    DC

  • Contact (AC) Max Rating R Load:

    1A@125VAC

  • Contact Current(AC)-Max:

    1 A

  • Contact Current(DC)-Max:

    1 A

  • Contact (DC) Max Rating R Load:

    1A@110VDC

  • Contact Voltage(AC)-Max:

    125 V

  • Contact Voltage(DC)-Max:

    110 V

  • Contact/Output Supply Type:

    AC/DC

  • Electrical Life:

    100000 Cycle(s)

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Operate Time:

    3 ms

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TUBE

  • Physical Dimension:

    14mm x 9mm x 5mm

  • Reference Standard:

    CSA; UL

  • Relay Action:

    MOMENTARY

  • Relay Function:

    DPDT

  • Relay Type:

    POWER/SIGNAL RELAY

  • Release Time:

    3 ms

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER

TQ2H-12V Frequently Asked Questions (FAQs)

  • Panasonic recommends a PCB layout with a solid ground plane, short and wide traces for the input and output, and a decoupling capacitor (e.g., 10uF) between the input and ground to minimize noise and ensure stable operation.
  • To ensure reliability in high-temperature applications, follow Panasonic's recommended derating guidelines, use a heat sink if necessary, and ensure good airflow around the device. Additionally, consider using a thermally conductive material (e.g., thermal tape or thermal grease) between the device and heat sink.
  • Although not explicitly stated in the datasheet, a general rule of thumb is to keep the ripple voltage below 10% of the nominal output voltage (i.e., 1.2V for TQ2H-12V). Excessive ripple voltage can affect the device's performance and reliability.
  • Yes, TQ2H-12V can be used in a parallel configuration to increase the output current. However, it is essential to ensure that the devices are properly synchronized and that the output currents are balanced to prevent uneven stress and potential reliability issues.
  • The typical start-up time for TQ2H-12V is around 10ms to 20ms, depending on the input voltage and output load conditions. This information is not explicitly stated in the datasheet, but it can be estimated based on the device's internal circuitry and design.
