- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for TQ2H-5V
- Part Number TQ2H-5V
- Manufacturer Panasonic
- Pin Count 10
- Part Category Relay or Contactor
- Package Category Other

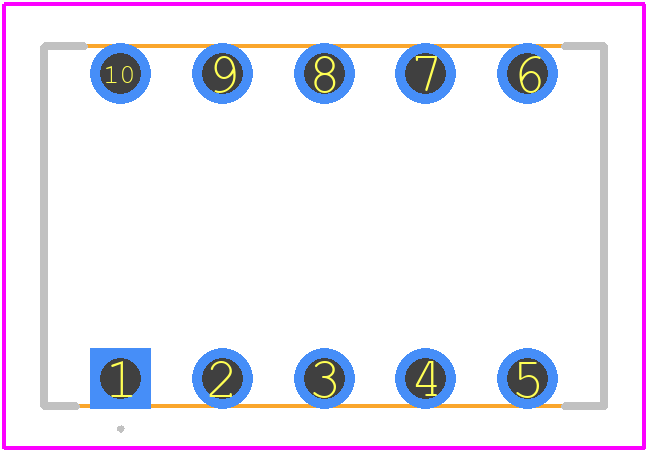

- Footprint Name Other - TQ2H-5V-2
- Released Date Mar 21, 2022
- Last Modified Date Jan 21, 2026 4:45 PM UTC
- Pinout / Pin List Click Here (Member Only)
TQ2H-5V Details
-
Manufacturer Part Number:
TQ2H-5V
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
ROHS COMPLIANT
-
Country Of Origin:
Japan
-
ECCN Code:
EAR99
-
HTS Code:
8536.49.00.50
-
Factory Lead Time:
16 Weeks
-
Manufacturer:
Panasonic Electronic Components
-
YTEOL:
7.87
TQ2H-5V Frequently Asked Questions (FAQs)
-
Panasonic provides a recommended PCB layout and land pattern in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure proper relay operation and to prevent overheating or electrical noise issues.
-
To handle the high inrush current, it's recommended to use a current-limiting resistor or an inrush current limiter in series with the relay coil. This will help prevent voltage drops and ensure reliable operation. Additionally, consider using a soft-start circuit or a relay driver IC with built-in current limiting.
-
The TQ2H-5V relay is rated for 100,000 cycles minimum at 5V, 1A, and 23°C. However, this can vary depending on the application, environment, and operating conditions. It's essential to consult Panasonic's reliability data and perform your own testing to determine the relay's lifespan in your specific use case.
-
The TQ2H-5V relay is rated for operation up to 85°C. While it can tolerate high temperatures, its performance and lifespan may be affected. Consult Panasonic's temperature derating charts and consider using a relay with a higher temperature rating if your application requires it.
-
To ensure EMC, follow proper PCB design practices, such as keeping the relay's coil and contacts away from sensitive components, using shielding, and implementing proper grounding. Additionally, consider using a relay with built-in EMC features, such as a shielded coil or a relay driver IC with EMC protection.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
TQ2H-5V Overview

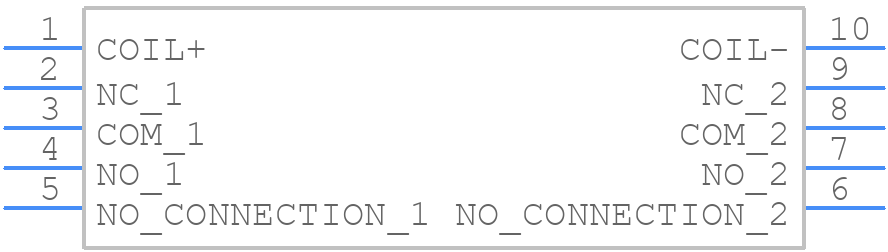

Use the download button to access the TQ2H-5V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TQ2H-,
or try a keyword search, such as Power/Signal Relays
