TQ2H-L2-12V Frequently Asked Questions (FAQs)

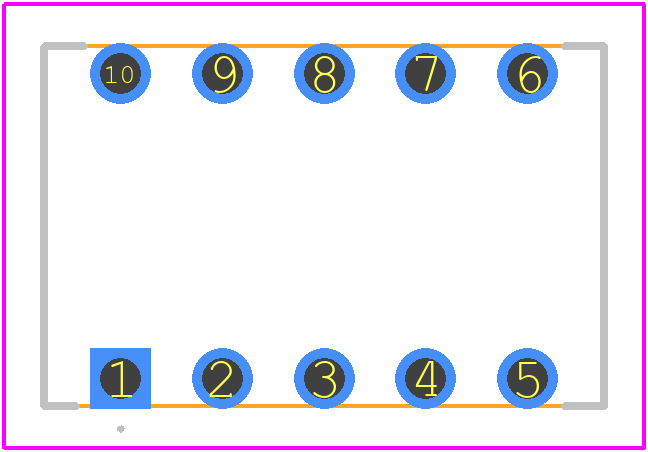

• What is the recommended PCB layout and land pattern for the TQ2H-L2-12V relay?
  Panasonic provides a recommended PCB layout and land pattern in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure proper relay operation and to prevent overheating or electrical noise issues.
• How do I handle the relay's high inrush current during switching?
  To handle the high inrush current, it's recommended to use a suitable current-limiting resistor or inrush current limiter in series with the relay coil. Additionally, consider using a soft-start circuit or a relay driver IC with built-in current limiting to reduce the inrush current.
• What is the relay's operating temperature range, and how does it affect its performance?
  The TQ2H-L2-12V relay has an operating temperature range of -40°C to 85°C. As the temperature increases, the relay's contact resistance and coil resistance may increase, affecting its performance. Ensure that the relay is operated within the specified temperature range to maintain its reliability and performance.
• How do I ensure the relay's contacts are clean and free from contamination?
  To ensure the relay's contacts are clean and free from contamination, follow proper handling and storage procedures. Avoid touching the contacts, and use a soft brush or compressed air to remove any debris. Apply a contact cleaner or lubricant as needed, and follow the manufacturer's recommendations for contact maintenance.
• What is the relay's expected lifespan, and how can I extend its lifetime?
  The TQ2H-L2-12V relay's expected lifespan is typically around 100,000 to 200,000 cycles, depending on the operating conditions. To extend its lifetime, ensure proper operating conditions, avoid excessive voltage or current, and minimize the number of switching cycles. Regularly inspect and clean the relay's contacts, and consider using a relay with a longer lifespan if required.
