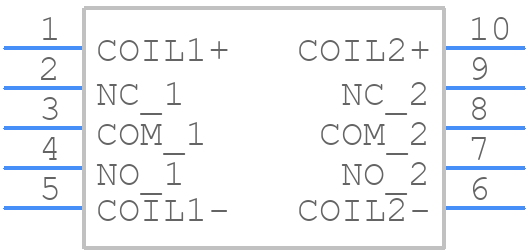

Symbol

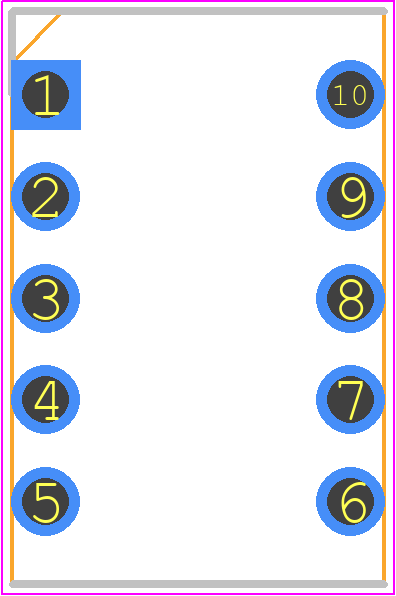

PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for TQ2L224ULCSA
- Part Number TQ2L224ULCSA
- Manufacturer Panasonic
- Pin Count 10
- Part Category Relay or Contactor
- Package Category Dual-In-Line Sockets
- Footprint Name Dual-In-Line Sockets - 2 Form C
- Released Date Jun 22, 2020
- Last Modified Date Jun 22, 2023 10:55 AM UTC
- Pinout / Pin List Click Here (Member Only)
TQ2L224ULCSA Details
-
Manufacturer Part Number:
TQ2L224ULCSA
-
Manufacturer:
Panasonic Electronic Components
Trust Checks
System Verified
TQ2L224ULCSA Overview
Use the download button to access the TQ2L224ULCSA schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like TQ2L2,
or try a keyword search, such as Power/Signal Relays
