Panasonic recommends a PCB layout with a solid ground plane, short and wide traces for power and ground, and a decoupling capacitor (e.g., 100nF) close to the IC. A 4-layer PCB with a dedicated power plane is also recommended.
To ensure reliability, follow Panasonic's recommended operating conditions, including temperature range (-40°C to 125°C) and power dissipation (PD). Implement thermal design considerations, such as heat sinks or thermal vias, to keep the junction temperature (Tj) below 125°C.
The maximum allowable voltage for the TQ2SA-3V-X is 4.5V, which is the absolute maximum rating. However, for reliable operation, it is recommended to operate the device within the recommended voltage range of 2.7V to 3.6V.
To prevent electrostatic discharge (ESD) damage, follow proper handling and storage procedures. Use ESD-protective packaging, wrist straps, and mats. Implement ESD protection circuits, such as TVS diodes or ESD protection arrays, in the PCB design.
Store the TQ2SA-3V-X in a dry, cool place (temperature range: 5°C to 30°C, humidity: 60% or less). Avoid exposure to direct sunlight, moisture, and contaminants. Use anti-static packaging and follow proper handling procedures.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TQ2SA-3V-X Overview

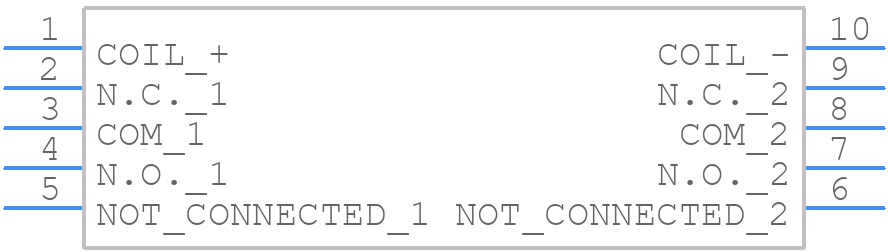

Use the download button to access the TQ2SA-3V-X schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TQ2SA,
or try a keyword search, such as Power/Signal Relays
