TQ2SA-6V - Panasonic

Description: Flat, 5 mm 2 Form C, 2 A, relays

Download TQ2SA-6V Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

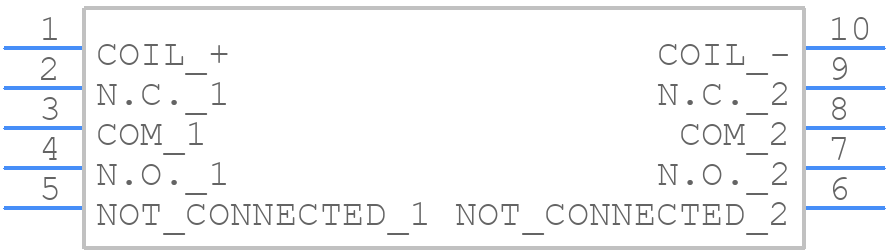

Symbol
TQ2SA-6V - Panasonic - PCB symbol
click to zoom
PCB Footprints
TQ2SA-6V - Panasonic PCB footprint - Other - Other - ATQ2_SL_SA
click to zoom
3D Models
TQ2SA-6V - Panasonic - 3D model - Other - ATQ2_SL_SA
click to zoom

TQ2SA-6V Details

  • Manufacturer Part Number:

    TQ2SA-6V

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.49.00.50

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    7.87

  • Additional Feature:

    LOW PROFILE

  • Body Breadth:

    9 mm

  • Body Height:

    5.4 mm

  • Body Length or Diameter:

    14 mm

  • Coil Current(DC)-Max:

    0.023 A

  • Coil Operate Voltage(DC):

    4.5 V

  • Coil Power:

    140 mW

  • Coil Release Voltage(DC):

    0.6 V

  • Coil Resistance:

    257 Ω

  • Coil Voltage(DC)-Max:

    6 V

  • Coil/Input Supply Type:

    DC

  • Contact (AC) Max Rating R Load:

    2A@125VAC

  • Contact Current(AC)-Max:

    2 A

  • Contact Current(DC)-Max:

    2 A

  • Contact (DC) Max Rating R Load:

    2A@220VDC

  • Contact Voltage(AC)-Max:

    125 V

  • Contact Voltage(DC)-Max:

    220 V

  • Contact/Output Supply Type:

    AC/DC

  • Electrical Life:

    100000 Cycle(s)

  • Mounting Feature:

    SURFACE MOUNT-STRAIGHT

  • Operate Time:

    4 ms

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TUBE

  • Physical Dimension:

    14mm x 9mm x 5.4mm

  • Reference Standard:

    CSA; UL

  • Relay Action:

    MOMENTARY

  • Relay Function:

    DPDT

  • Relay Type:

    POWER/SIGNAL RELAY

  • Release Time:

    4 ms

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER

TQ2SA-6V Frequently Asked Questions (FAQs)

  • Panasonic provides a recommended PCB layout and land pattern in their application notes. It's essential to follow these guidelines to ensure proper soldering and to prevent thermal issues.
  • To ensure reliable operation in high-temperature environments, make sure to derate the relay's current capacity according to the temperature derating curve provided in the datasheet. Also, ensure good airflow and thermal management around the relay.
  • The recommended switching cycle for the TQ2SA-6V is 10,000 operations minimum. However, this can vary depending on the application and environmental conditions. It's essential to consult the datasheet and Panasonic's application notes for more information.
  • The TQ2SA-6V is not designed for safety-critical applications. If you need a relay for a safety-critical application, you should consider using a relay that meets the relevant safety standards, such as IEC 61508 or UL 508.
  • To protect the relay from overvoltage and surge events, consider adding overvoltage protection devices, such as TVS diodes or varistors, in parallel with the relay coil. You should also ensure that the relay is properly fused and that the power supply is designed to handle voltage surges.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TQ2SA-6V Overview

Use the download button to access the TQ2SA-6V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TQ2SA, or try a keyword search, such as Power/Signal Relays
