- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for TQ2SA-L-3V
- Part Number TQ2SA-L-3V
- Manufacturer Panasonic
- Pin Count 10
- Part Category Relay or Contactor
- Package Category Other
- Footprint Name Other - ATQ2_SL_SA
- Released Date Jan 21, 2026
- Last Modified Date Mar 23, 2026 2:54 PM UTC
- Pinout / Pin List Click Here (Member Only)
TQ2SA-L-3V Details
-
Manufacturer Part Number:
TQ2SA-L-3V
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
ROHS COMPLIANT
-
Country Of Origin:
Japan
-
ECCN Code:
EAR99
-
HTS Code:
8536.49.00.50
-
Factory Lead Time:
20 Weeks
-
Manufacturer:
Panasonic Electronic Components
-
YTEOL:
6.85
TQ2SA-L-3V Frequently Asked Questions (FAQs)
-
Panasonic provides a recommended PCB layout and land pattern in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure proper soldering and to prevent thermal issues.
-
To ensure reliable operation in high-temperature environments, it's crucial to consider the relay's power dissipation, thermal resistance, and ambient temperature. Panasonic provides thermal derating curves in the datasheet, which can help engineers design for high-temperature applications.
-
Panasonic recommends using a transistor-driven circuit with a base resistor and a freewheeling diode to ensure proper relay operation and to prevent back-EMF damage. A sample drive circuit is often provided in the datasheet or application notes.
-
To handle the inrush current, it's essential to consider the relay's coil resistance, inductance, and the drive circuit's impedance. A soft-start circuit or an inrush current limiter can be used to reduce the inrush current and prevent voltage drops or electromagnetic interference (EMI).
-
When using the TQ2SA-L-3V relay in hazardous environments, it's crucial to consider safety standards such as UL, CSA, or ATEX. Engineers should ensure the relay is used within its specified ratings, and proper safety precautions are taken to prevent electrical shock, explosion, or fire hazards.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
TQ2SA-L-3V Overview

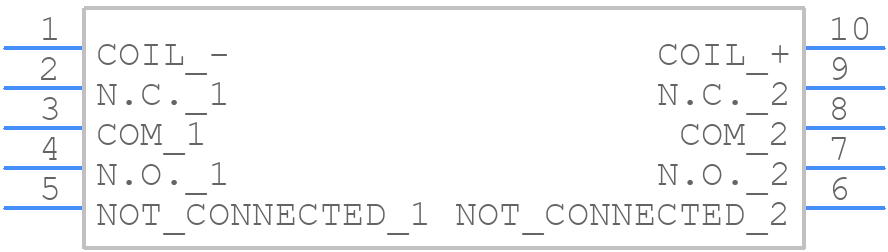

Use the download button to access the TQ2SA-L-3V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TQ2SA,
or try a keyword search, such as Power/Signal Relays
