Panasonic provides a recommended PCB layout and land pattern in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure proper mounting and to prevent thermal issues.
To ensure reliable operation in high-temperature environments, it's crucial to consider the relay's power consumption, PCB thermal design, and heat dissipation. Panasonic recommends using a heat sink or thermal pad to dissipate heat, and ensuring good airflow around the relay.
Panasonic recommends using a transistor-driven circuit with a base resistor and a freewheeling diode to ensure proper relay operation and to prevent back-EMF damage. A sample drive circuit is provided in the datasheet.
To handle the inrush current, it's recommended to use a soft-start circuit or an inrush current limiter to reduce the initial current surge. This helps prevent voltage drops and ensures reliable relay operation.
In high-vibration environments, it's essential to ensure the relay is securely mounted to the PCB using the recommended mounting pattern and that the PCB is designed to withstand vibrations. Additionally, consider using a relay with a higher vibration rating or adding vibration dampening materials to the PCB.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TQ2SA-L2-3V Overview

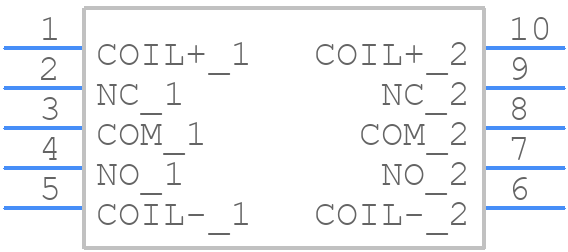

Use the download button to access the TQ2SA-L2-3V schematic symbol, PCB footprint, and 3D model.
