The maximum switching frequency of the TQ2SA-L2-9V-X relay is 30 Hz. Exceeding this frequency may lead to reduced relay life or failure.
The TQ2SA-L2-9V-X relay is rated for operation up to 85°C. While it can tolerate short-term excursions up to 100°C, prolonged exposure above 85°C may affect its performance and lifespan.
To ensure reliable operation in a high-vibration environment, it is recommended to use a relay socket or a PCB mount with a secure fastening mechanism to prevent the relay from shifting or detaching. Additionally, consider using a relay with a higher vibration rating, such as the TQ2SA-L2-9V-X-V, which is designed for high-vibration applications.
The recommended PCB layout and spacing for the TQ2SA-L2-9V-X relay can be found in the Panasonic application note 'Relay Mounting and PCB Layout Guidelines'. In general, a minimum spacing of 1.5 mm between the relay and other components is recommended to ensure reliable operation and prevent electrical noise.
The TQ2SA-L2-9V-X relay is not designed for safety-critical applications and does not meet the requirements of IEC 61508 or other safety standards. For safety-critical applications, consider using a relay that meets the relevant safety standards, such as the Panasonic TQ2SA-L2-9V-X-S, which is designed for safety-critical applications.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TQ2SA-L2-9V-X Overview

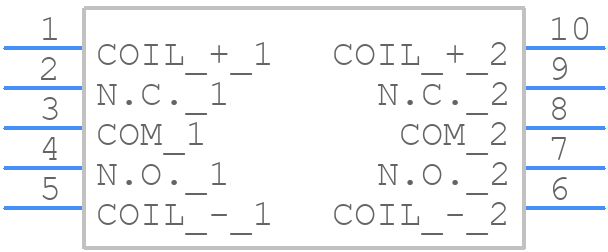

Use the download button to access the TQ2SA-L2-9V-X schematic symbol, PCB footprint, and 3D model.
