- Part Number TQ2SA-L2-9V
- Manufacturer Panasonic
- Pin Count 10
- Part Category Relay or Contactor
- Package Category Other
- Footprint Name Other - ATQ2_SL_SA
- Released Date Jan 21, 2026
- Last Modified Date Mar 23, 2026 2:54 PM UTC
- Pinout / Pin List Click Here (Member Only)
TQ2SA-L2-9V Details
-
Manufacturer Part Number:
TQ2SA-L2-9V
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
ROHS COMPLIANT
-
Country Of Origin:
Japan
-
ECCN Code:
EAR99
-
HTS Code:
8536.49.00.50
-
Factory Lead Time:
20 Weeks
-
Manufacturer:
Panasonic Electronic Components
-
YTEOL:
7.87
TQ2SA-L2-9V Frequently Asked Questions (FAQs)
-
The maximum switching frequency of the TQ2SA-L2-9V relay is 30 operations per minute, as specified in the datasheet. However, it's recommended to limit the switching frequency to 10-20 operations per minute to ensure reliable operation and extend the relay's lifespan.
-
The TQ2SA-L2-9V relay is rated for operation in temperatures between -40°C and 85°C. While it can tolerate high temperatures, it's essential to ensure that the relay is not exposed to temperatures above 85°C for extended periods, as this can affect its reliability and lifespan.
-
To ensure proper driving and control of the TQ2SA-L2-9V relay, it's essential to follow the recommended drive circuit and voltage levels specified in the datasheet. Additionally, ensure that the relay is properly decoupled from the power supply and that the control signal is clean and free from noise.
-
The recommended PCB layout and spacing for the TQ2SA-L2-9V relay can be found in the datasheet or in Panasonic's application notes. In general, it's essential to maintain a minimum clearance of 1.5 mm between the relay and other components, and to ensure that the relay is mounted on a solid ground plane to minimize electromagnetic interference.
-
The TQ2SA-L2-9V relay is a general-purpose relay and is not designed for use in safety-critical applications. If you need a relay for a safety-critical application, you should consider using a relay that is specifically designed and certified for such use, such as a relay with UL or IEC certification.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
TQ2SA-L2-9V Overview

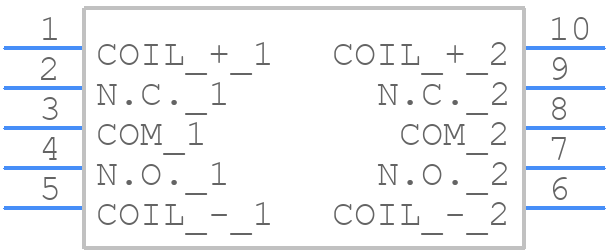

Use the download button to access the TQ2SA-L2-9V schematic symbol, PCB footprint, and 3D model.
