- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for TQ2SL-12V
- Part Number TQ2SL-12V
- Manufacturer Panasonic
- Pin Count 10
- Part Category Relay or Contactor
- Package Category Other
- Footprint Name Other - TQ2SL-12V-1
- Released Date Sep 9, 2020
- Last Modified Date Jan 21, 2026 4:45 PM UTC
- Pinout / Pin List Click Here (Member Only)
TQ2SL-12V Details
-
Manufacturer Part Number:
TQ2SL-12V
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
ROHS COMPLIANT
-
Country Of Origin:
Japan
-
ECCN Code:
EAR99
-
HTS Code:
8536.49.00.50
-
Factory Lead Time:
20 Weeks
-
Manufacturer:
Panasonic Electronic Components
-
YTEOL:
7.87
TQ2SL-12V Frequently Asked Questions (FAQs)
-
Panasonic provides a recommended PCB layout and land pattern in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure proper soldering and to prevent thermal issues.
-
To handle the high inrush current, it's recommended to use a soft-start circuit or an NTC thermistor in series with the relay coil to limit the inrush current. Additionally, a freewheeling diode can be used to reduce the voltage spike during switching.
-
The maximum allowable voltage drop across the relay contacts is typically around 100 mV to 200 mV, depending on the specific application and requirements. Exceeding this voltage drop can lead to contact degradation and reduced relay lifespan.
-
To ensure reliable relay operation in high-temperature environments, it's essential to consider the relay's temperature derating, use a suitable thermal interface material, and ensure good airflow around the relay. Additionally, selecting a relay with a high temperature rating, such as the TQ2SL-12V, can help ensure reliable operation.
-
To reduce EMI, it's recommended to use a relay coil suppression method such as a snubber circuit or a common-mode choke in series with the relay coil. This helps to reduce the high-frequency noise generated during relay switching.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
TQ2SL-12V Overview

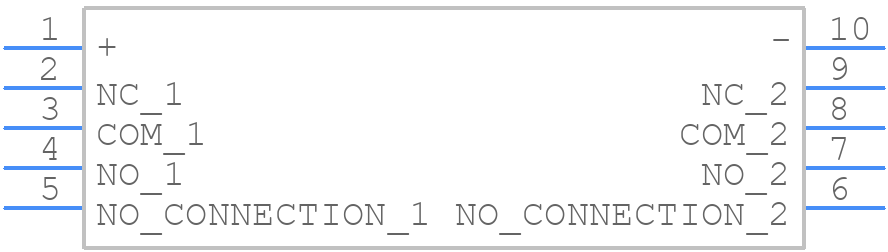

Use the download button to access the TQ2SL-12V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TQ2SL,
or try a keyword search, such as Power/Signal Relays
