TQL9063 - Qorvo

Description: RF Amplifier 1.5-4.0GHz NF .7dB Gain 19dB

Download TQL9063 Model

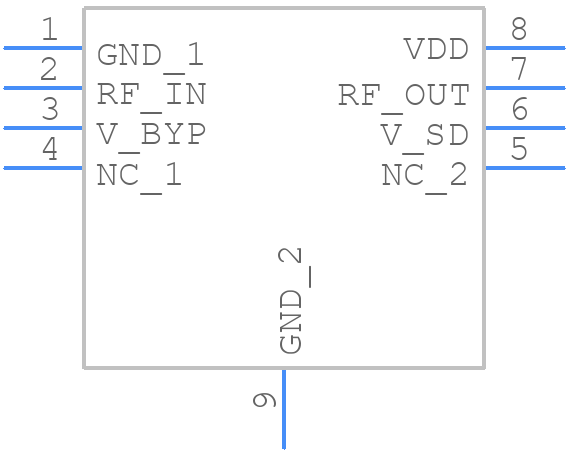

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TQL9063 - Qorvo PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN
click to zoom
3D Models
TQL9063 - Qorvo  - 3D model - Small Outline No-lead - DFN
click to zoom

TQL9063 Details

  • Manufacturer Part Number:

    TQL9063

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    5A991.B

  • Manufacturer:

    Qorvo

  • YTEOL:

    7.03

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    17.5 dB

  • Input Power-Max (CW):

    22 dBm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    4000 MHz

  • Operating Frequency-Min:

    500 MHz

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    WIDE BAND MEDIUM POWER

  • Supply Current-Max:

    100 mA

  • Surface Mount:

    YES

  • Technology:

    E-PHEMT

  • VSWR-Max:

    2.01

TQL9063 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the edge of the board to minimize radiation. A via-stitched ground plane under the device is also recommended to reduce radiation.
  • Use a combination of simulation tools and empirical methods to optimize the input and output matching networks. Start with a simple L-match or pi-match network and then use simulation tools to optimize the component values. Consider using a 3D electromagnetic simulator to model the PCB and optimize the matching networks.
  • A heat sink with a thermal conductivity of at least 1 W/m-K is recommended. Apply a thin layer of thermal interface material (TIM) between the device and the heat sink. Ensure good airflow around the heat sink to dissipate heat efficiently.
  • Follow the recommended biasing scheme in the datasheet. Ensure the voltage supply is well-regulated and decoupled. Use a low-noise voltage regulator and add decoupling capacitors close to the device. Verify the bias voltage and current using a multimeter or oscilloscope.
  • Handle the device in an ESD-controlled environment. Wear an ESD strap or use an ESD mat. Use ESD-protected packaging and storage materials. Avoid touching the device pins or exposed die. Use an ESD-protected workstation and follow proper handling procedures.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TQL9063 Overview

Use the download button to access the TQL9063 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TQL90, or try a keyword search, such as RF/Microwave Amplifiers

About Qorvo

Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
