TQP4M0008 - Qorvo

Description: RF Switch ICs .1-6GHz SPDT IL .3dB

Download TQP4M0008 Model
Schematic
symbols

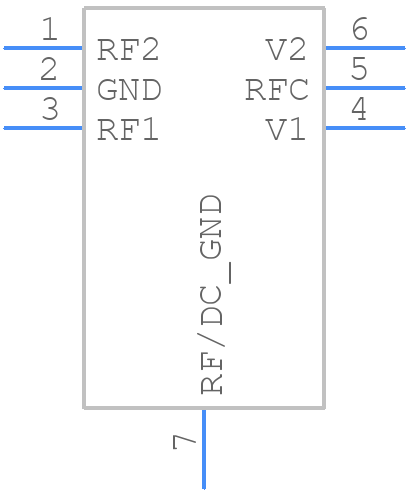

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TQP4M0008 - Qorvo PCB footprint - Small Outline No-lead - Small Outline No-lead - 6-Pin 2 x 2 mm DFN Package
click to zoom
3D Models
TQP4M0008 - Qorvo  - 3D model - Small Outline No-lead - 6-Pin 2 x 2 mm DFN Package
click to zoom

TQP4M0008 Details

  • Manufacturer Part Number:

    TQP4M0008

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-6

  • ECCN Code:

    5A991.B

  • Manufacturer:

    Qorvo

  • YTEOL:

    6.4

  • 1dB Compression Point:

    37 dBm

  • Additional Feature:

    I/P POWER-MAX(PEAK)=37DBM

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    33 dBm

  • Insertion Loss-Max:

    0.95 dB

  • Isolation-Min:

    16 dB

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • On Time-Nom:

    0.11 µs

  • Operating Frequency-Max:

    6000 MHz

  • Operating Frequency-Min:

    100 MHz

  • Operating Temperature-Max:

    95 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOLCC6,.08,20

  • Port Termination:

    REFLECTIVE

  • Power Supplies:

    1.8/5 V

  • RF/Microwave Device Type:

    SPDT

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • VSWR-Max:

    1.25

TQP4M0008 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the center of the board, and the input and output tracks should be kept short and away from noise sources.
  • The device requires a single 3.3V power supply, and the VCC pin should be decoupled with a 10nF capacitor to ground. The bias voltage (VB) should be set to 1.5V using a voltage divider or a dedicated voltage regulator.
  • The maximum input power is +10dBm, and exceeding this may cause compression or damage to the device. It's recommended to use an attenuator or a limiter to prevent overdrive.
  • Optimize the input and output matching networks for minimum noise figure and maximum gain. Use a 50Ω input and output impedance, and adjust the bias voltage and current for optimal performance.
  • The operating temperature range is -40°C to +85°C. However, the device's performance may degrade at extreme temperatures, and it's recommended to operate within a narrower range (e.g., 0°C to +70°C) for optimal performance.
