- Part Number TQP4M9071
- Manufacturer Qorvo
- Pin Count 25
- Part Category Attenuator or Isolator
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - TQP4M9071
- Released Date Jun 20, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
TQP4M9071 Details
-
Manufacturer Part Number:
TQP4M9071
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
4 X 4 MM, GREEN, LEADLESS, MO-220, QFN-24
-
ECCN Code:
EAR99
-
Manufacturer:
Qorvo
-
YTEOL:
6.8
-
Additional Feature:
CMOS COMPATIBLE
-
Attenuation-Nom:
31.5 dB
-
Characteristic Impedance:
50 Ω
-
Construction:
COMPONENT
TQP4M9071 Frequently Asked Questions (FAQs)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the center of the board, and the input and output tracks should be kept short and away from noise sources.
-
The device requires a single 5V supply voltage, and the VCC pin should be decoupled with a 10uF capacitor to ground. The bias voltage (VBIAS) should be set to 2.5V using a voltage divider or a dedicated voltage regulator.
-
The device can handle up to 31.5 dBm of input power, but it's recommended to operate it within the 1 dB compression point (typically around 25 dBm) to ensure optimal linearity and performance.
-
The device can be optimized for a specific frequency band by adjusting the external matching components (e.g., inductors, capacitors) and the bias voltage. Qorvo provides a simulation model and application notes to help with the optimization process.
-
The device is specified to operate from -40°C to 85°C, but it's recommended to operate it within a narrower temperature range (e.g., 0°C to 70°C) to ensure optimal performance and reliability.
Trust Checks
Community Provided
System Verified
Community Approved
TQP4M9071 Overview

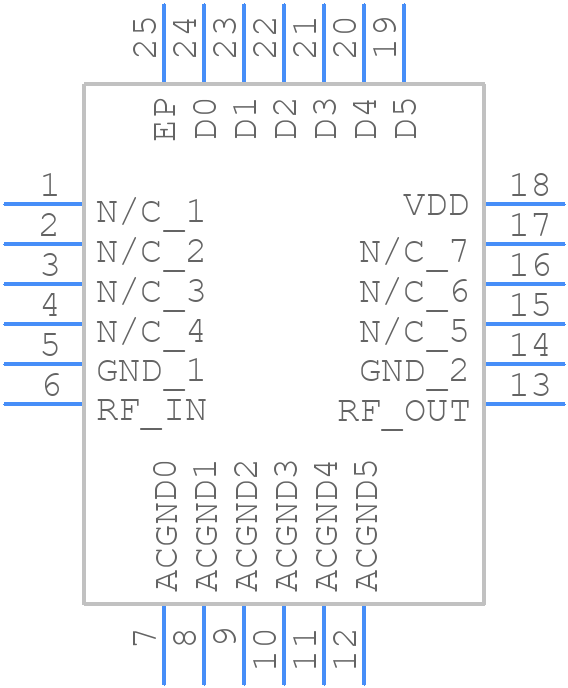

Use the download button to access the TQP4M9071 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TQP4M,
or try a keyword search, such as RF/Microwave Attenuators
About Qorvo
Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
