TQP4M9072 - Qorvo

Description: Attenuators DC-4GHz 57dBm IP3 IL 7.7dB @ 2GHz

Download TQP4M9072 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

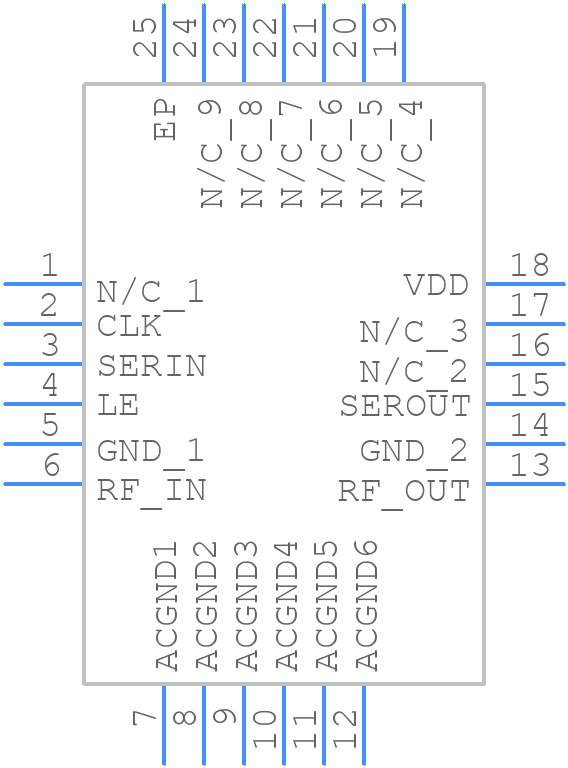

TQP4M9072 - Qorvo - PCB symbol
click to zoom
PCB Footprints
TQP4M9072 - Qorvo PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN 24Pin
click to zoom
3D Models
TQP4M9072 - Qorvo - 3D model - Quad Flat No-Lead - QFN 24Pin
click to zoom

TQP4M9072 Details

  • Manufacturer Part Number:

    TQP4M9072

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    4 X 4 MM, GREEN, LEADLESS, PLASTIC, MO-220VGGC, QFN-24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Qorvo

  • YTEOL:

    3

  • Attenuation-Nom:

    31.5 dB

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    27.99 dBm

  • Insertion Loss-Max:

    2.1 dB

  • JESD-609 Code:

    e2

  • Operating Frequency-Max:

    4000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    VARIABLE ATTENUATOR

  • Terminal Finish:

    Tin/Silver (Sn/Ag)

TQP4M9072 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the center of the board, and the input and output tracks should be kept short and away from noise sources.
  • The device requires a single 5V supply voltage, and the VCC pin should be decoupled with a 10uF capacitor to ground. The bias voltage (VBIAS) should be set to 2.5V using a voltage divider or a dedicated voltage regulator.
  • The TQP4M9072 can handle up to 30 dBm of input power, but it's recommended to operate it at a maximum of 25 dBm to ensure optimal performance and reliability.
  • Use a spectrum analyzer to check the input and output signals, and verify that the device is properly biased and terminated. Check for any signs of overheating, and ensure that the PCB layout is correct and free of noise sources.
  • Yes, the TQP4M9072 can be used in a push-pull configuration, but it requires a balun or a transformer to combine the outputs. The device's output impedance should be matched to the load impedance to ensure optimal performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TQP4M9072 Overview

Use the download button to access the TQP4M9072 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TQP4M, or try a keyword search, such as RF/Microwave Attenuators

About Qorvo

Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
