A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the RF traces as short as possible and use 50-ohm microstrip lines. Avoid vias and thermal pads under the device.
Use a voltage regulator to set Vcc to 3.3V. Set the bias voltage (Vb) to 2.5V for optimal efficiency. Adjust the bias current (Ib) to 10-20mA for optimal performance.
Use a pi-network or a T-network for input and output matching. The values of the components will depend on the specific application and frequency of operation. Consult the application note for more information.
Use a high-quality input filter to reduce out-of-band noise. Optimize the biasing and matching networks for minimum noise figure. Consider using a noise-reducing component, such as a ferrite bead, in the power supply line.
The TQP9218 can handle up to 2W of input power. However, the maximum power handling will depend on the specific application and the thermal management of the device.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TQP9218 Overview

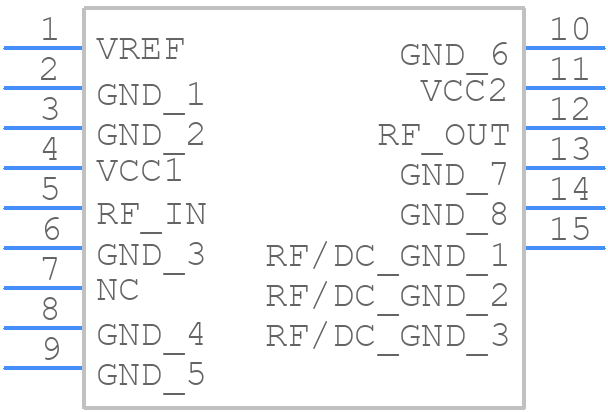

Use the download button to access the TQP9218 schematic symbol, PCB footprint, and 3D model.
