A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the RF traces as short as possible and use 50-ohm microstrip lines. Avoid vias and thermal pads under the device.
Use a voltage regulator to set VCC to 3.3V. Set VBIAS to 2.5V using a resistive divider. Adjust the bias current to 10mA for optimal efficiency. Monitor the device temperature to prevent overheating.
Use a pi-network or a T-network for input matching. For output matching, use a series inductor and a shunt capacitor. Optimize the component values using a network analyzer or simulation software.
Use a high-impedance input matching network to minimize noise. Add a noise-reducing component, such as a ferrite bead, to the VCC line. Ensure good PCB layout and grounding to minimize electromagnetic interference.
The TQP9221 can handle up to 2W of input power. However, the device may be damaged if the input power exceeds 3W. Use an attenuator or a limiter to prevent overdrive.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TQP9221 Overview

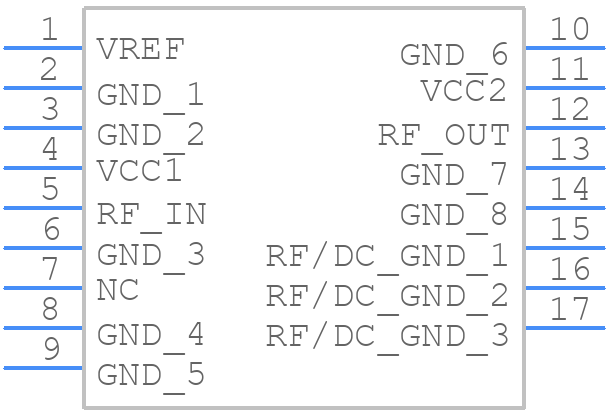

Use the download button to access the TQP9221 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TQP92,
or try a keyword search, such as Other Telecom ICs
About Qorvo
Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
