Technical Content
Part Image

TQP9309 - Qorvo

Description: 700 - 1000 MHz, 0.5 Watt, High Efficiency Small Cell Power Amplifier

Download TQP9309 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

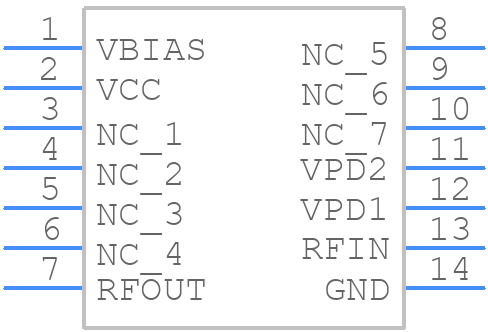

TQP9309 - Qorvo - PCB symbol
click to zoom
PCB Footprints
TQP9309 - Qorvo PCB footprint - Other - Other - TQP9309-2
click to zoom
3D Models
TQP9309 - Qorvo - 3D model - Other - TQP9309-2
click to zoom

TQP9309 Details

  • Manufacturer Part Number:

    TQP9309

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    9030.82.00.00

  • Manufacturer:

    Qorvo

  • YTEOL:

    6.94

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    29.6 dB

  • Input Power-Max (CW):

    10 dBm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    13

  • Operating Frequency-Max:

    960 MHz

  • Operating Frequency-Min:

    700 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    WIDE BAND MEDIUM POWER

  • Surface Mount:

    YES

  • Terminal Finish:

    GOLD OVER NICKEL

  • VSWR-Max:

    7

TQP9309 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize coupling. Use a common mode choke or a ferrite bead to filter the input power.
  • Use a Smith chart or a network analyzer to optimize the input matching network. Start with a simple L-match or π-match network and adjust the component values to achieve a good impedance match (e.g., 50 ohms) at the desired frequency.
  • The TQP9309 can handle up to 5W of input power. However, the actual power handling capability depends on the operating frequency, bias conditions, and thermal management. Ensure proper heat sinking and thermal design to prevent overheating.
  • Bias the TQP9309 with a voltage source (e.g., 5V) and a current limit (e.g., 100mA) to ensure stable operation. Adjust the bias voltage and current to optimize the amplifier's gain, linearity, and power consumption.
  • The recommended operating temperature range for the TQP9309 is -40°C to +85°C. However, the device can operate up to +125°C with reduced performance and reliability. Ensure proper thermal management to prevent overheating.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TQP9309 Overview

Use the download button to access the TQP9309 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TQP93, or try a keyword search, such as RF/Microwave Amplifiers

About Qorvo

Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
