A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the edge of the board to minimize radiation. A via-stitched ground plane under the device is also recommended to reduce electromagnetic radiation.
The TQQ7307 requires a bias voltage of 3.3V to 5V. A voltage regulator or a low-dropout regulator (LDO) can be used to regulate the voltage. The bias voltage should be decoupled with a 10uF capacitor to reduce noise and ensure stable operation.
The TQQ7307 can handle up to 30 dBm of input power. However, the device is typically operated at a maximum input power of 20 dBm to ensure optimal performance and reliability.
The TQQ7307 can be optimized for a specific frequency band by adjusting the external matching network. The device has a set of external pins that can be connected to external components to optimize the impedance matching for a specific frequency band.
The TQQ7307 operates over a temperature range of -40°C to 85°C. However, the device's performance may degrade at extreme temperatures. It is recommended to operate the device within a temperature range of 0°C to 70°C for optimal performance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TQQ7307 Overview

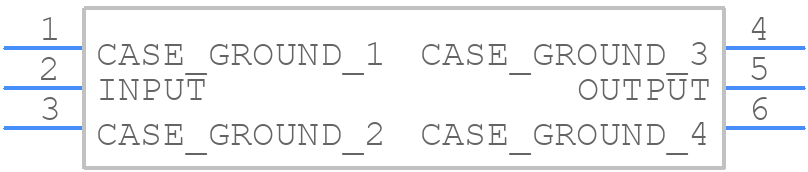

Use the download button to access the TQQ7307 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TQQ73,
or try a keyword search, such as SAW Filters
About Qorvo
Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
