The recommended land pattern for TR3D476K025C0100 can be found in the Vishay Intertechnologies' Capacitor Land Pattern Recommendations document. It's essential to follow the recommended land pattern to ensure reliable soldering and to prevent defects.
The capacitance of TR3D476K025C0100 may decrease with increasing frequency due to the inherent characteristics of ceramic capacitors. For specific frequency-dependent capacitance data, consult the Vishay Intertechnologies' application notes or contact their technical support.
TR3D476K025C0100 is a commercial-grade capacitor, but it's not specifically designed for high-reliability applications. For high-reliability applications, consider using capacitors with a higher reliability rating, such as those with a COTS (Commercial-Off-The-Shelf) or MIL-PRF-55681 certification.
TR3D476K025C0100 is rated for operation up to 125°C. However, the capacitor's performance and lifespan may degrade at high temperatures. For high-temperature applications, consider using capacitors with a higher temperature rating, such as those with an X7R or X8R dielectric.
Handle TR3D476K025C0100 by the body, avoiding touching the leads or the ceramic body. Store the capacitors in a cool, dry place, away from direct sunlight and moisture. Follow the EIA-541 and IPC-J-STD-033 standards for handling and storage of electronic components.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TR3D476K025C0100 Overview

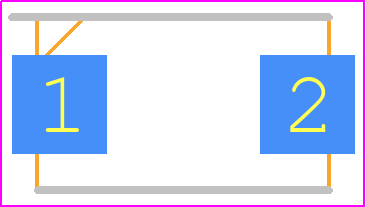

Use the download button to access the TR3D476K025C0100 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TR3D4,
or try a keyword search, such as Tantalum Capacitors
