TR3D477M004E0125 - Vishay

Description: Solid Tantalum Surface Mount Chip Capacitors TANTAMOUNT(TM), Molded Case, Low ESR

Download TR3D477M004E0125 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

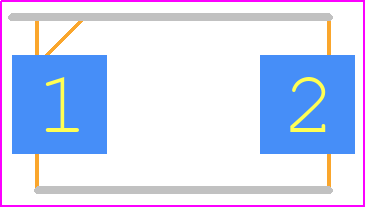

TR3D477M004E0125 - Vishay PCB footprint - Capacitor Moulded Polarised - Capacitor Moulded Polarised - Case Code D
