- Part Number TRC1300N
- Manufacturer Texas Instruments
- Pin Count 16
- Part Category Integrated Circuit
- Package Category Dual-In-Line Packages
- Footprint Name Dual-In-Line Packages - TRC1300N
- Released Date Jul 29, 2024
- Last Modified Date Jul 29, 2024 9:41 AM UTC
- Pinout / Pin List Click Here (Member Only)
TRC1300N Details
-
Manufacturer Part Number:
TRC1300N
-
Brand Name:
Texas Instruments
-
Pbfree Code:
No
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
DIP
-
Package Description:
PLASTIC, DIP-16
-
Pin Count:
16
-
HTS Code:
8542.39.00.60
-
Manufacturer:
Texas Instruments
-
YTEOL:
0
-
Consumer IC Type:
SUPPORT CIRCUIT
TRC1300N Frequently Asked Questions (FAQs)
-
Texas Instruments provides a recommended PCB layout in the TRC1300N datasheet, which includes guidelines for component placement, trace routing, and thermal management. It's essential to follow these guidelines to ensure optimal performance, low noise, and high accuracy.
-
The choice of input and output capacitors depends on the specific application, operating frequency, and desired performance. TI recommends using low-ESR capacitors with a minimum capacitance of 10uF for the input and output. The datasheet provides more detailed guidance on capacitor selection.
-
The TRC1300N is rated for operation from -40°C to 125°C. However, the device's performance and accuracy may degrade at extreme temperatures. It's essential to ensure proper thermal management and heat sinking to maintain optimal performance.
-
The TRC1300N does not have built-in overcurrent protection. To implement overcurrent protection, you can use an external current sense resistor and a comparator or a dedicated overcurrent protection IC. TI provides application notes and reference designs for overcurrent protection.
-
The recommended startup sequence for the TRC1300N is to first apply the input voltage, followed by the enable signal. This ensures that the device starts up correctly and avoids any potential latch-up or damage.
Trust Checks
Community Provided
System Verified
Community Approved
TRC1300N Overview

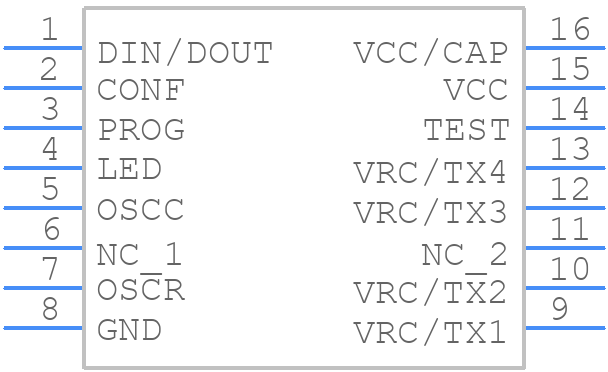

Use the download button to access the TRC1300N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TRC13,
or try a keyword search, such as Remote Control ICs
