Texas Instruments provides a recommended PCB layout in the application note SLAU603, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
The input and output matching networks can be designed using the TI's RF and Microwave Toolbox software, which provides a graphical interface for designing and optimizing matching networks. Additionally, the application note SLAU603 provides guidelines for designing matching networks for the TRF370315IRGER.
The maximum power handling capability of the TRF370315IRGER is dependent on the operating frequency, voltage, and temperature. According to the datasheet, the device can handle up to 2W of output power at 3.5GHz. However, it's recommended to derate the power handling capability based on the specific application and operating conditions.
The TRF370315IRGER requires a bias voltage of 3.3V to 5V, and the recommended bias current is 30mA to 50mA. It's essential to ensure the bias voltage and current are within the recommended range to achieve optimal performance. Additionally, the application note SLAU603 provides guidelines for biasing the device.
The thermal resistance of the TRF370315IRGER is 25°C/W. To ensure proper thermal management, it's recommended to use a heat sink or thermal pad to dissipate heat, and to keep the device away from other heat sources. Additionally, the application note SLAU603 provides guidelines for thermal management.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TRF370315IRGER Overview

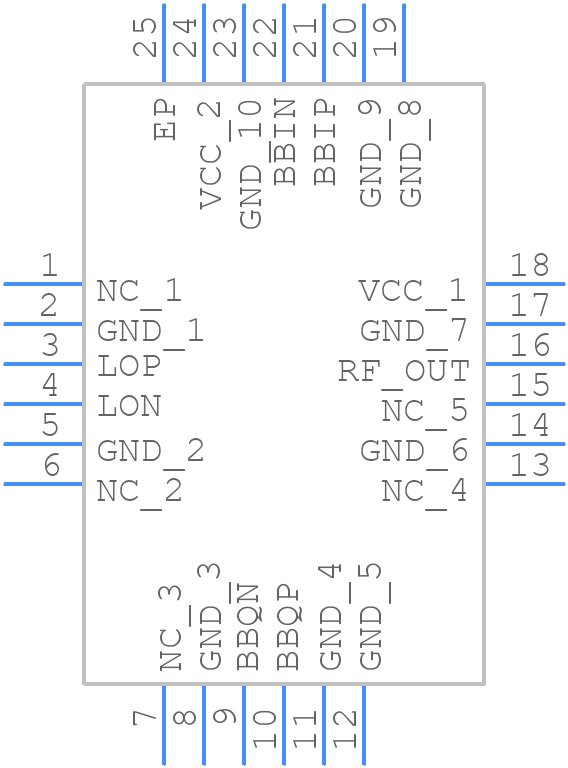

Use the download button to access the TRF370315IRGER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TRF37,
or try a keyword search, such as Cellular Telephone Circuits
