TRF370333IRGER - Texas Instruments

Description: Modulator / Demodulator 0.4GHz-4GHz Quad Mod

Download TRF370333IRGER Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

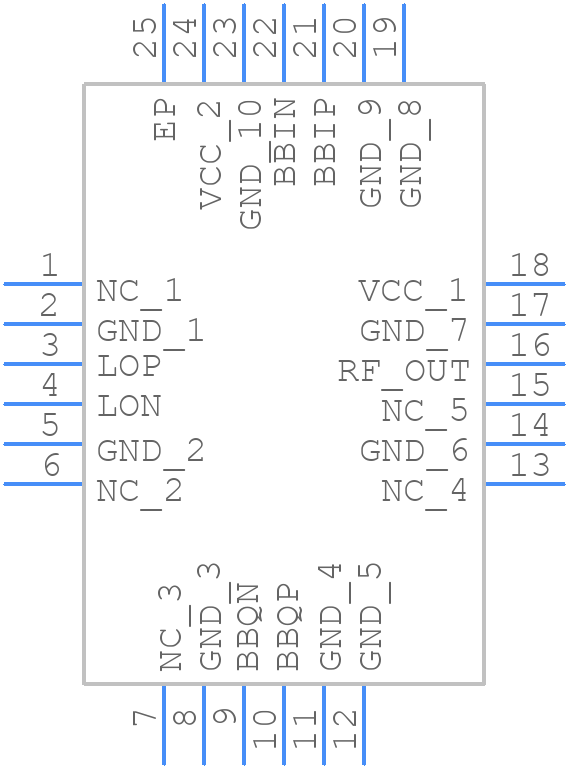

TRF370333IRGER - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TRF370333IRGER - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGE0024B
click to zoom
3D Models
TRF370333IRGER - Texas Instruments - 3D model - Quad Flat No-Lead - RGE0024B
click to zoom

TRF370333IRGER Details

  • Manufacturer Part Number:

    TRF370333IRGER

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    HVQCCN, LCC24,.16SQ,20

  • Pin Count:

    24

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    235 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    RF AND BASEBAND CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

TRF370333IRGER Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the application note SLAU603, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
  • The TRF370333IRGER is a highly configurable device. To configure it for a specific frequency band, refer to the device's programming guide (SLAU604) and use the TI's RF Wizard software tool to generate the required register settings.
  • The maximum input power that the TRF370333IRGER can handle is +10 dBm. Exceeding this limit may cause damage to the device or affect its performance.
  • Texas Instruments provides a troubleshooting guide (SLAU605) that covers common issues and their solutions. Additionally, engineers can use TI's RF Analyzer software tool to debug and analyze the device's performance.
  • Yes, the TRF370333IRGER is designed to work seamlessly with other Texas Instruments devices, including microcontrollers, amplifiers, and other RF components. Refer to the device's datasheet and application notes for specific compatibility information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TRF370333IRGER Overview

Use the download button to access the TRF370333IRGER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TRF37, or try a keyword search, such as Cellular Telephone Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
