TRF370417IRGET - Texas Instruments

Description: 50MHz to 6.0 GHz Quadrature Modulator, 1.7V common-mode voltage

Download TRF370417IRGET Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

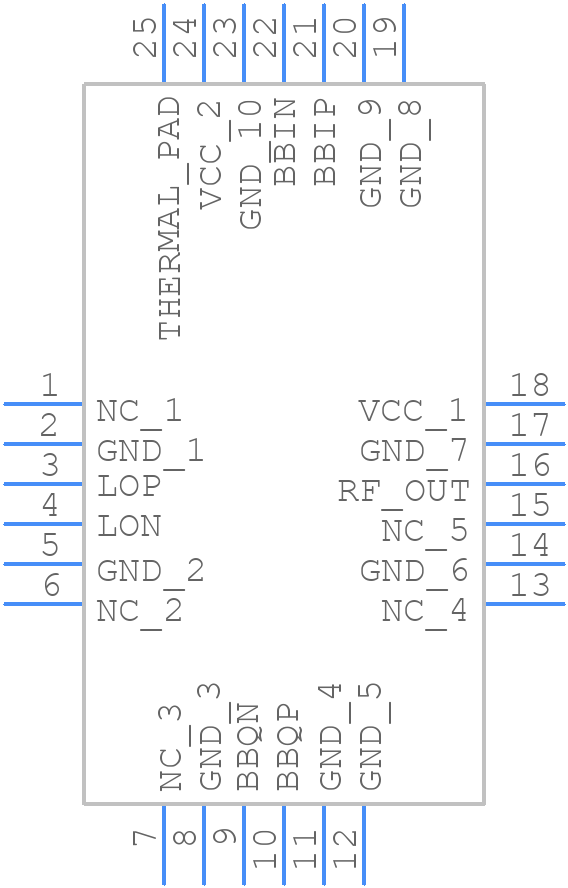

TRF370417IRGET - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TRF370417IRGET - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGE(S-PVQFN-N24)_D SHAPE PADS
click to zoom
3D Models
TRF370417IRGET - Texas Instruments - 3D model - Quad Flat No-Lead - RGE(S-PVQFN-N24)_D SHAPE PADS
click to zoom

TRF370417IRGET Details

  • Manufacturer Part Number:

    TRF370417IRGET

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    24

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    0.245 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    RF AND BASEBAND CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

TRF370417IRGET Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the RF signal traces short and away from the power plane. Use a common mode filter or a pi-filter to reduce EMI.
  • Ensure good thermal conductivity by using a heat sink or a thermal pad. Keep the device away from heat sources and ensure good airflow. Monitor the junction temperature (TJ) and adjust the operating conditions accordingly.
  • The recommended input impedance is 50 ohms, and the output impedance is 200 ohms. Use a pi-network or a T-network to match the impedance for optimal performance.
  • Use a low-noise amplifier or a pre-amplifier before the TRF370417IRGET. Ensure the input signal is strong and clean. Use a noise filter or a band-pass filter to reduce out-of-band noise.
  • The maximum power handling capability is 1W. Ensure the input power is within the specified range to avoid damage to the device.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TRF370417IRGET Overview

Use the download button to access the TRF370417IRGET schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TRF37, or try a keyword search, such as Cellular Telephone Circuits
